APG1005PBC-T-5MAV

LED Indication - Discrete Overview

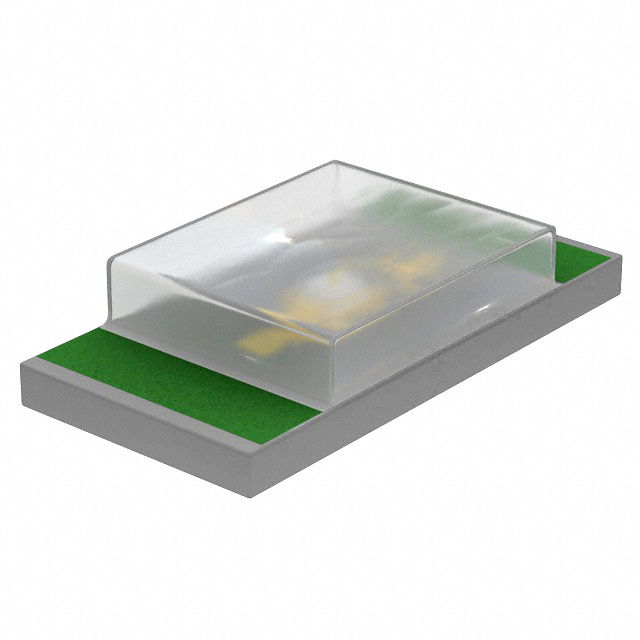

The Kingbright APG1005PBC-T-5MAV is a single-color blue surface-mount LED designed for compact electronic applications. It features a 0402 (1.0 x 0.5 mm) footprint with an ultra-thin profile of 0.2 mm height. The component emits light at a wavelength of 467 nm with a water-clear lens providing a viewing angle of 145 degrees. Typical forward voltage is 2.9 V, and the luminous intensity reaches 28 mcd under standard test conditions.

LED Indication - Discrete Feature Summary

• Ultra-thin chip construction suitable for space-constrained designs
• Water-clear lens material for high transmission efficiency
• Single-die configuration for simplified circuit integration

LED Indication - Discrete Applications

• Backlighting for small displays and keypads
• Status indication in portable consumer electronics
• Panel indicators for compact instrumentation

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct binning and lens color specifications. Confirm RoHS compliance status and moisture sensitivity level prior to soldering. Check manufacturer datasheets for reflow temperature profiles and storage conditions to prevent package damage during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when minimal board area and low profile are critical constraints. Compare luminous intensity requirements against typical values to ensure adequate visibility. Ensure the forward voltage aligns with available drive voltages in the target system design.

LED Indication - Discrete Part Context

This part belongs to Kingbright's ultra-thin SMD LED series, specifically engineered for modern miniaturized devices. It replaces older through-hole or larger surface-mount LEDs where height restrictions limit component placement options on densely populated PCBs.

LED Indication - Discrete Replacement Considerations

APG1005VWF-A1-5MAV offers similar dimensions but emits white light instead of blue.
