APGF0606SYKCGK-TT-C2

LED Indication - Discrete Overview

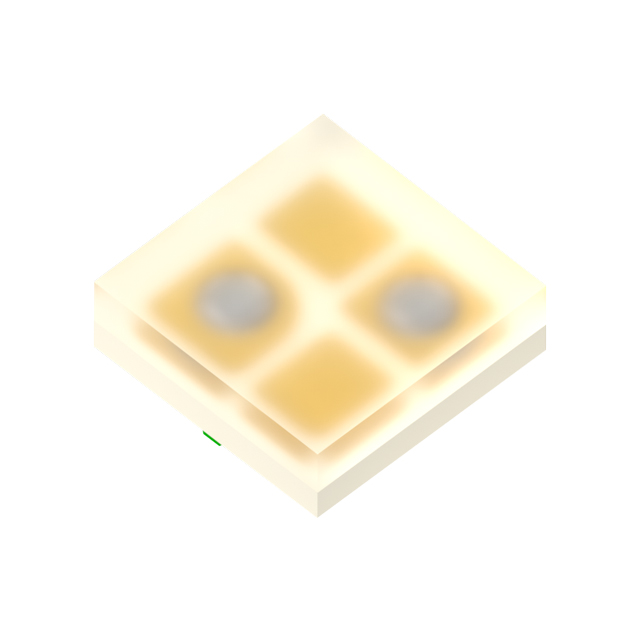

The APGF0606SYKCGK-TT-C2 is a bi-color surface-mount LED from Kingbright, featuring a miniature 0.65mm x 0.65mm footprint with a height of 0.2mm. It emits yellow light at 591nm and green light at 570nm, offering intensities of 30 mcd and 15 mcd respectively. The device operates with a forward current of 10mA and a forward voltage of 2.3V. It utilizes a colorless rectangular lens with a 140-degree viewing angle, designed for compact electronic applications.

LED Indication - Discrete Feature Summary

• Ultra-small 0.65mm x 0.65mm x 0.2mm footprint suitable for space-constrained designs
• Bi-color configuration enabling yellow and green emission combinations
• Low power consumption driven at 5mA to 10mA for efficient operation

LED Indication - Discrete Applications

• Backlighting for portable consumer electronics
• Indicator lights in wearable devices
• Status indicators in disposable medical devices
• Visual signals in industrial handheld devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix -C2 against the manufacturer's official datasheet to confirm binning and optical specifications. Ensure compatibility with standard SMD reflow soldering profiles. Confirm RoHS compliance status through the latest component documentation prior to integration into final assemblies.

LED Indication - Discrete Selection Notes

Select this component when design constraints require minimal board area and low profile height. The bi-color capability allows for dual-state signaling within a single package. Evaluate thermal management requirements relative to the small form factor and ensure drive circuits support the specified 10mA forward current limits.

LED Indication - Discrete Part Context

This part belongs to the APGF series of miniature bi-color LEDs. It shares the physical dimensions and mounting style with other variants in the 0202 metric package family. The series is engineered for high-density PCB layouts where traditional LED packages cannot fit.

LED Indication - Discrete Replacement Considerations

Direct substitutes include APGF0606SYKCGK-TT or APGF0606SYKCGK without the -C2 suffix, provided optical binning matches requirements. Verify pinout and electrical characteristics before substitution.
