APHCM2012PBC/A-F01

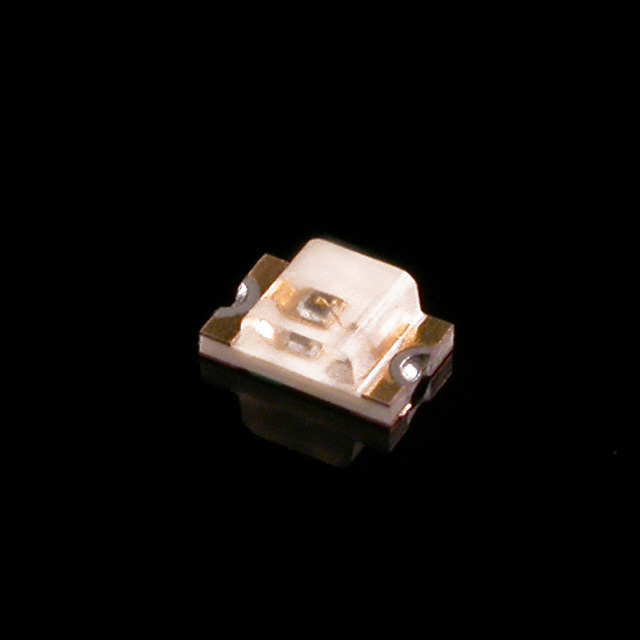

Description：LED BLUE CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5b545879a5c8 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED BLUE CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：60mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Surface Mount
Wavelength - Dominant：470nm
Wavelength - Peak：468nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：Chip LED
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.40mm
Grade：-
Qualification：-

Download product information

APHCM2012PBC/A-F01

Overview

The APHCM2012PBC/A-F01 is a single-color blue surface-mount LED from Kingbright, housed in a 2012 (0805 metric) package. It features a clear lens and emits light at a peak wavelength of 470 nm with an intensity of 100 mcd. The device operates with a forward voltage of 3.2 V and a maximum forward current of 20 mA.

Feature Summary

Compact 2012 surface-mount form factor for space-constrained designs
Clear lens construction for optimal light transmission
Blue emission spectrum centered at 470 nm

Applications

Panel indicator lights
Status indication on electronic devices
Backlighting applications

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm optical and electrical characteristics. Ensure compatibility with standard reflow soldering profiles for SMD components. Cross-reference pin assignments if integrating into existing PCB layouts.

Selection Notes

Select this component for applications requiring a standard blue indicator in a compact footprint. Consider the 3.2 V forward voltage drop when designing drive circuits. Evaluate thermal management requirements based on the 20 mA maximum forward current rating.

Part Context

This part belongs to Kingbright's SMD LED portfolio, designed for general indication purposes. The 2012 package size aligns with common industry standards for surface-mount technology, facilitating automated assembly processes.

Replacement Considerations

Consult official substitution guides for equivalent blue LEDs in the 2012 package. Verify matching wavelength, intensity, and voltage specifications before replacing.
