APIM160808SBR47MT

Fixed Inductors Overview

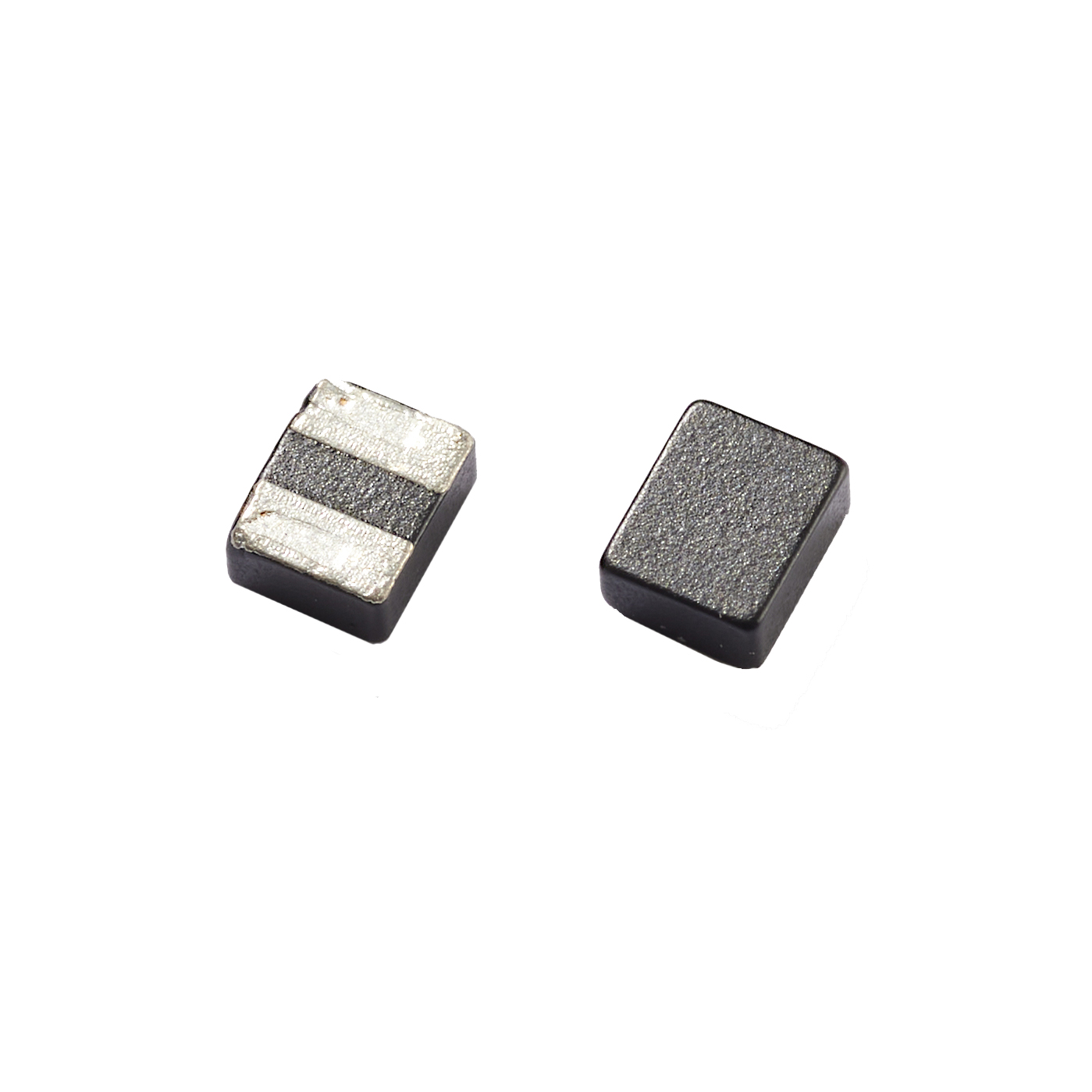

The APIM160808SBR47MT is a surface-mount power inductor manufactured by Arlitech Electronic Corp. It features an unshielded molded construction with an inductance of 470 nH (0.47 uH). The component supports a maximum current rating of 2.3 A and exhibits a maximum DC resistance of 100 mOhm. It utilizes the standard 0603 (1608 Metric) package footprint, measuring 1.6 mm by 0.8 mm. This design targets applications requiring compact power filtering solutions within space-constrained electronic assemblies.

Fixed Inductors Feature Summary

• Unshielded molded construction for reduced electromagnetic interference coupling
• Compact 0603 surface-mount footprint suitable for high-density PCB layouts
• Designed for power supply filtering and energy storage applications

Fixed Inductors Applications

• LCD panel power circuits
• Consumer electronics power management
• Smart metering systems

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Arlitech Electronic Corp documentation to confirm specifications. Ensure the procurement channel provides valid traceability for the component. Check for RoHS compliance status if required by specific project standards. Confirm that the received units match the 0603 package dimensions and electrical ratings specified in the datasheet before integration into production lines.

Fixed Inductors Selection Notes

Select this component when a low-profile inductor is required for power filtering in dense circuit designs. The 2.3 A current rating and 100 mOhm resistance define its performance envelope for specific load requirements. Consider the unshielded nature of the device regarding nearby sensitive components. Verify that the 470 nH value aligns with the target switching frequency and impedance characteristics of the intended power stage.

Fixed Inductors Part Context

Arlitech Electronic Corp. specializes in inductor manufacturing, primarily serving the LCD panel industry. The company focuses on providing components that help reduce costs and improve quality within the electronic supply chain. This specific model represents their contribution to surface-mount power inductor technologies used in modern display and consumer electronics.

Fixed Inductors Replacement Considerations

Cross-reference other 0603 unshielded power inductors with 470 nH inductance and similar current ratings. Verify physical footprint compatibility and electrical parameter equivalence before substitution.
