APTM100UM45FAG

Single FETs, MOSFETs Overview

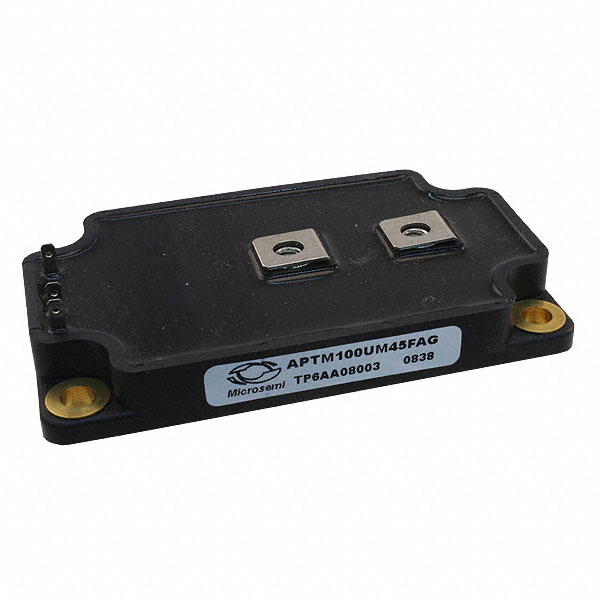

The APTM100UM45FAG is a single-channel N-Channel MOSFET module from Microchip Technology, utilizing silicon technology within the POWER MOS 7 series. It features a SP6 screw-mount package with dimensions of 108 mm length, 62 mm width, and 15 mm height. Key electrical parameters include a drain-source breakdown voltage (Vds) of 1 kV, a continuous drain current (Id) of 215 A, and a maximum on-resistance (Rds On) of 45 mOhms. The gate-source voltage range is -30 V to +30 V, with a threshold voltage of 3 V. Power dissipation reaches 5 kW, operating between -40°C and +150°C junction temperature.

Single FETs, MOSFETs Feature Summary

• Integrates a single N-Channel MOSFET switch in a robust screw-mount SP6 package for high-power applications.
• Utilizes POWER MOS 7 silicon technology to achieve low on-resistance and high current handling capabilities.
• Designed for thermal efficiency with a power dissipation rating of 5 kW and an extended operating temperature range.

Single FETs, MOSFETs Applications

• Industrial motor drives and control systems
• High-frequency switching power supplies
• Inverter circuits in renewable energy systems

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix 'FAG' against the official Microchip datasheet to confirm pinout and internal configuration details. Ensure the SP6 package mounting torque specifications are strictly followed during installation to maintain thermal interface integrity. Confirm RoHS compliance status through the manufacturer's latest documentation before final procurement decisions.

Single FETs, MOSFETs Selection Notes

Select this component when a single-switch solution with 1 kV blocking voltage and over 200 A current capacity is required. The 45 mOhm Rds On offers a balance between conduction loss and cost for silicon-based designs. Consider the SP6 package constraints and screw-mount requirements for mechanical integration into existing heatsink structures.

Single FETs, MOSFETs Part Context

This module belongs to the APTM100 series, which groups similar high-current MOSFET modules by Microchip Technology. The series utilizes the SP6 package format, providing a standardized footprint for various voltage and resistance combinations within the POWER MOS 7 family. This specific part represents a 1 kV, 45 mOhm variant optimized for general-purpose high-power switching.

Single FETs, MOSFETs Replacement Considerations

Direct substitutes may include other APTM100 series parts with compatible SP6 packaging, such as APTM100UM60FAG, provided the higher on-resistance is acceptable. Verify that any replacement maintains the same 1 kV Vds rating and fits the physical SP6 mechanical envelope without modifying the host board layout.
