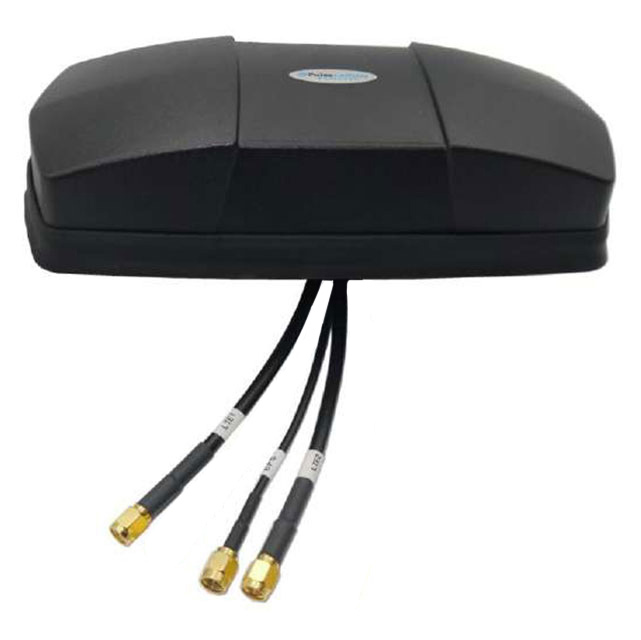

ARM32011AM

$109.57

Description：RF ANT 829MHZ/1.582GHZ MOD ADH
Series：ARMADILLO
Mfr：Pulse Electronics
Package：Bulk

SKU:be078bfc0e7e Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ARM32011AM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 829MHZ/1.582GHZ MOD ADH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ARM32011AM

Description：RF ANT 829MHZ/1.582GHZ MOD ADH
Series：ARMADILLO
Mfr：Pulse Electronics
Package：Bulk
RF Family/Standard：Cellular, Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.582GHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type：Module
Number of Bands：3
VSWR：2, 2.5
Return Loss：-
Gain：4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi
Features：Cable - 5.18m, LNA
Termination：SMA Male (3)
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：1.772" (45.00mm)
Applications：GPS, LTE
Power - Max：-

Antennas RF datasheet and documents for ARM32011AM

ARM32011AM

Antennas RF Overview

The ARM32011AM is a vehicular multiband antenna module designed for adhesive mounting. It supports frequency ranges of 698-2690 MHz and 2.4-5.x GHz, with a gain of 3.1 dBi. The component measures 8.0 inches in length and complies with RoHS-6 standards.

Antennas RF Feature Summary

Multiband RF antenna capability
Adhesive tape mounting option
Vehicular application design

Antennas RF Applications

Vehicular communication systems
GNSS integration
Wireless connectivity modules

Antennas RF Procurement Notes

Verify the specific datasheet version from Pulse Electronics or authorized distributors to confirm exact electrical parameters and mechanical dimensions. Ensure compliance with project-specific regulatory requirements such as RoHS-6 before procurement.

Antennas RF Selection Notes

Select this model for applications requiring integrated multiband support in vehicles. Confirm that the adhesive mounting method aligns with the installation surface and environmental conditions of the target deployment.

Antennas RF Part Context

Pulse Electronics specializes in passive and magnetic-based components, including antennas. This part falls under their RF antenna portfolio, targeting automotive and wireless connectivity markets with specialized mounting solutions.

Antennas RF Replacement Considerations

Consult official Pulse documentation for verified substitute part numbers. Do not assume cross-compatibility without confirming identical frequency ranges, gain specifications, and mounting configurations.
