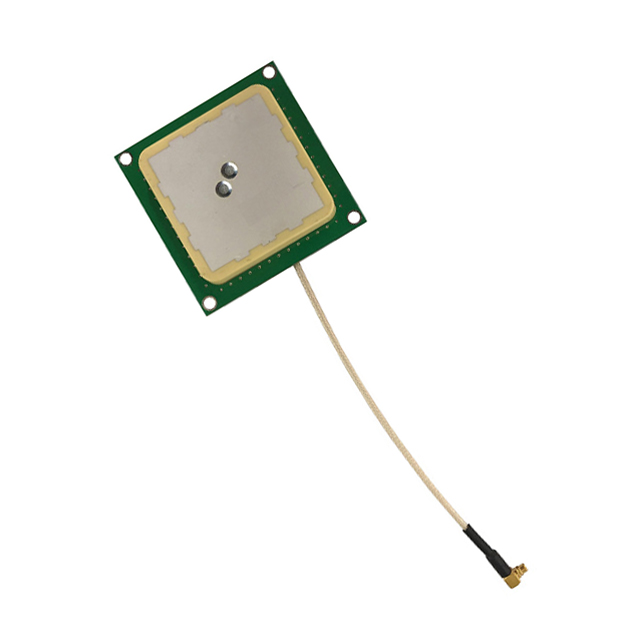

ARRKP5062-S915B

$18.87

Description：RF ANT 915MHZ CER PATCH MMCX SMD
Series：ARRKP
Mfr：Abracon LLC
Package：Bulk

SKU:bb0d30db005f Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ARRKP5062-S915B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 915MHZ CER PATCH MMCX SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ARRKP5062-S915B

Description：RF ANT 915MHZ CER PATCH MMCX SMD
Series：ARRKP
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：915MHz
Frequency Range：902MHz ~ 928MHz
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：2
Return Loss：-10dB
Gain：3dBi
Features：-
Termination：MMCX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.244" (6.20mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for ARRKP5062-S915B

ARRKP5062-S915B

Antennas RF Overview

The ARRKP5062-S915B is a ceramic patch antenna designed for UHF RFID applications. It operates within the 902 MHz to 928 MHz frequency range, centered at 915 MHz with a bandwidth of 20 MHz. The component features a gain of 3 dBi and an impedance of 50 Ohms. It utilizes Right Hand Circular Polarization (RHCP) and has a minimum axial ratio of 3 dB. The physical dimensions are 50 mm in length, 6.2 mm in height, and it includes a 120 mm RG178 cable terminated with an MMCX-JW connector.

Antennas RF Feature Summary

Dielectric ceramic construction for easy installation
Right Hand Circular Polarization (RHCP)
Low-profile design suitable for embedded use

Antennas RF Applications

UHF RFID systems
General purpose RF communication
Embedded passive tag readers

Antennas RF Procurement Notes

Verify the specific termination style and cable length requirements against your system design. Confirm that the MMCX-JW connector interface matches your reader equipment. Ensure the operating temperature range of -40°C to +85°C meets your environmental conditions. Check for compliance with regional frequency regulations for the 902-928 MHz band before deployment.

Antennas RF Selection Notes

Select this model when Right Hand Circular Polarization is required for UHF RFID operations. Consider the low-profile ceramic patch form factor for space-constrained installations. Evaluate the 3 dBi gain and 50 Ohm impedance compatibility with existing RF chains. Verify that the screw-mount or surface-mount capability fits the target enclosure design.

Antennas RF Part Context

This component belongs to Abracon's line of ultra-high frequency RFID antennas. It is categorized as a PCB mount or screw-mount patch antenna. The product series focuses on dielectric ceramic types optimized for passive RFID tags. It serves as a specialized solution for industrial and commercial identification systems requiring reliable UHF signal transmission.
