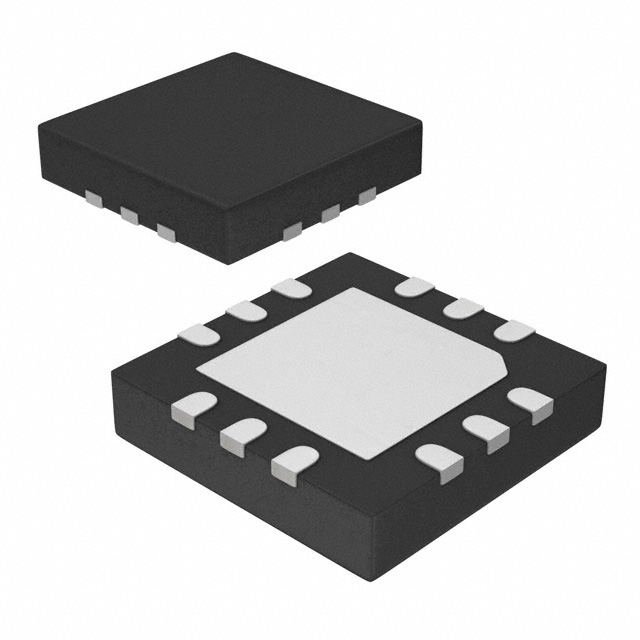

AS1352

Description：IC REG LIN POS PROG 200MA 12-QFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f35948265f07 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AS1352 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is IC REG LIN POS PROG 200MA 12-QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AS1352

Description：IC REG LIN POS PROG 200MA 12-QFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Programmable
Number of Regulators：4
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.8V
Voltage - Output (Max)：3.3V
Voltage Dropout (Max)：-
Current - Output：200mA
Current - Quiescent (Iq)：350 µA
Current - Supply (Max)：-
PSRR：70dB ~ 40dB (1KHz ~ 100kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature, Soft Start
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：12-VQFN Exposed Pad
Supplier Device Package：12-QFN (4x4)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AS1352

AS1352

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AS1352 is a high-performance quad CMOS low-dropout voltage regulator housed in a single QFN package. It provides four independent regulators with an output current of 200mA each and supports a supply range of 3V to 5.5V. The device features one-time programmable (OTP) output voltages ranging from 1.8V to 3.3V in 0.1V steps, or factory-trimmed fixed versions. Key electrical parameters include a dropout voltage of 0.2V at 200mA, shutdown current of ≤1µA, and supply current without load of 225µA. Stability is ensured with ceramic capacitors between 1µF and 4.7µF.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Four independent LDOs with digital enable inputs and integrated thermal and over-current protection
One-time programmable architecture allowing onsite voltage configuration or factory-trimmed fixed outputs
Low noise performance suitable for direct connection to sensitive circuits without additional filtering
Optimized stability with low ESR ceramic output capacitors

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Mobile phones and PDAs
MP3 players and handheld computers
Digital cameras and portable CD/DVD players

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific ordering suffix to confirm whether the component requires user-side programming via the austriamicrosystems board or arrives as a factory-trimmed version with preset voltages. Ensure the selected package variant matches the required pin count and physical dimensions for the target PCB layout.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select the 12-pin QFN 4x4 or 16-pin QFN 3x3 package based on available board space and routing requirements. Choose the OTP version for design flexibility during prototyping or the factory-trimmed variant for mass production efficiency. Confirm that the application environment remains within the specified -40°C to +85°C operating temperature range.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

Manufactured by austriamicrosystems AG (now ams AG), this component belongs to a series of power management solutions designed for battery-operated electronics. The datasheet indicates technical content validity despite corporate name changes, maintaining compatibility with established mobile device power architectures.
