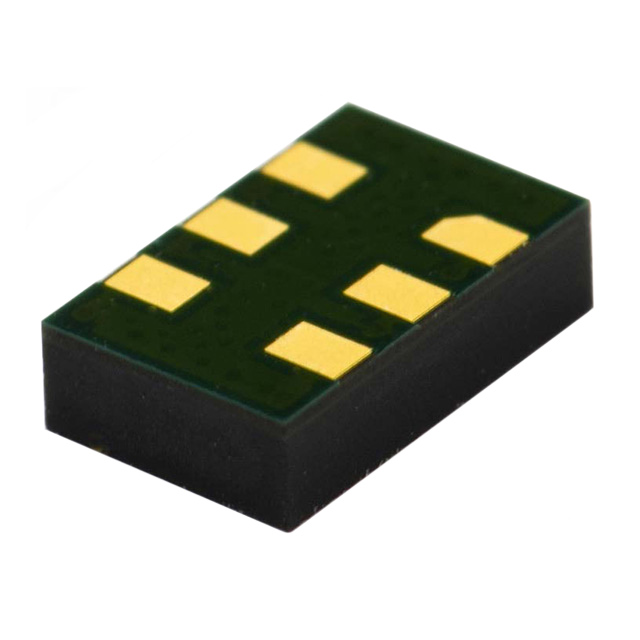

ASFLMX-50.000MHZ-5ABB-T

$4.51

Description：XTAL OSC XO 50.0000MHZ LVDS SMD
Series：ASFLMX
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:aed3966c0e67 Category: Oscillators Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ASFLMX-50.000MHZ-5ABB-T is listed in the Oscillators range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is XTAL OSC XO 50.0000MHZ LVDS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for ASFLMX-50.000MHZ-5ABB-T

Description：XTAL OSC XO 50.0000MHZ LVDS SMD
Series：ASFLMX
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：50 MHz
Function：Enable/Disable
Output：LVDS
Voltage - Supply：2.375V ~ 3.63V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：90mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.055" (1.40mm)
Supplier Device Package：6-SMD (5x3.2)

Oscillators datasheet and documents for ASFLMX-50.000MHZ-5ABB-T

ASFLMX-50.000MHZ-5ABB-T

Oscillators Overview

The ASFLMX-50.000MHZ-5ABB-T is a surface-mount LVDS oscillator manufactured by Abracon LLC, operating at a nominal frequency of 50 MHz with a stability of ±50 ppm. It supports supply voltages ranging from 2.375 V to 3.63 V and features an enable/disable control function. The device utilizes a 6-pin LGA SMD package measuring 5 mm x 3.2 mm. Output characteristics include a duty cycle of 55% and compatibility with 2.5 V/3.3 V logic levels.

Oscillators Feature Summary

Low Voltage Differential Signaling (LVDS) output format for reduced electromagnetic interference
Integrated enable/disable functionality for power management control
Compact 6-pin LGA surface-mount package design

Oscillators Applications

High-speed data transmission interfaces requiring low jitter clocks
Telecommunications equipment signal processing circuits
Industrial automation control systems

Oscillators Procurement Notes

Verify the specific suffix 'T' indicates reel packaging configuration against official Abracon documentation. Confirm that the 50 ppm stability rating aligns with your system's timing requirements. Ensure the 2.375V minimum voltage meets your power rail specifications. Cross-reference the 6-pin LGA footprint dimensions with your PCB layout constraints before finalizing procurement orders.

Oscillators Selection Notes

Select this component when LVDS signaling is required for noise immunity in 50 MHz applications. The enable/disable pin allows for dynamic power saving in battery-operated devices. Compare against standard HCMOS oscillators if lower cost is prioritized over signal integrity. Verify thermal performance within the specified operating temperature range for your enclosure environment.

Oscillators Part Context

This part belongs to the ASFLMX series of low-voltage differential signaling oscillators from Abracon. It serves as a precision clock source for digital systems requiring high-frequency stability. The series is designed for compact electronic designs where space constraints and signal quality are critical factors in circuit architecture.
