ASPC201L

Antennas RF Overview

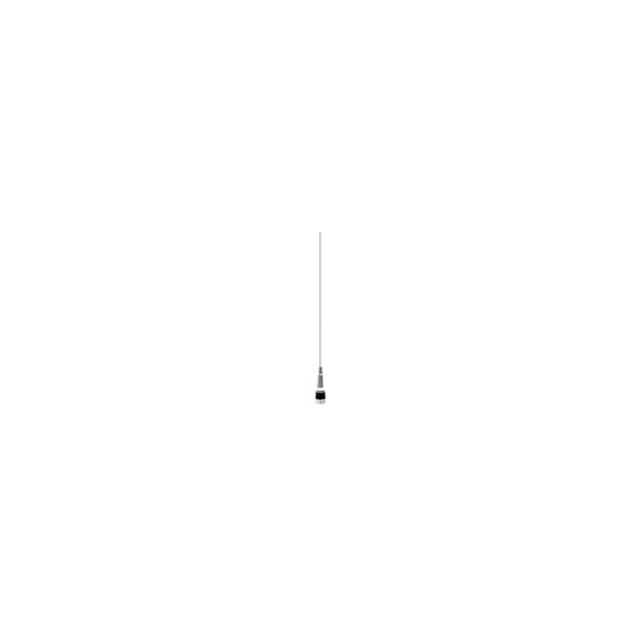

The ASPC201L is a field tunable VHF/UHF wideband quarter-wave antenna manufactured by Amphenol PCTEL. It operates within a frequency range of 108 to 512 MHz and supports up to 100 W power handling. The unit features a straight whip design with a UHF male base mount, intended for 3/8-inch hole installations. It includes an antenna mount, cable, and connector. The operating temperature range spans from -40°C to 85°C.

Antennas RF Feature Summary

• Field tunable wideband coverage for VHF and UHF frequencies
• Designed for equipment interoperability without sacrificing bandwidth
• Heavy-duty stainless steel construction for durability

Antennas RF Applications

• Wide frequency-ranging synthesized radio equipment
• Multi-band communication systems requiring broad coverage
• Rooftop or panel mount installations via 3/8-inch holes

Antennas RF Procurement Notes

Verify the specific manufacturer designation, as this component is associated with both PCTEL and Maxrad. Confirm compatibility with Antenna Specialists 3/4-inch hole mounts if alternative mounting solutions are required. Check current status, as some records indicate obsolescence dates. Ensure the included accessories (mount, cable, connector) match project requirements.

Antennas RF Selection Notes

Select this model when broad frequency agility between 108 and 512 MHz is necessary. It is suitable for applications requiring a single antenna solution for multiple bands. Consider the 3/8-inch mounting requirement and the inclusion of the UHF male connector. Evaluate the need for field tunability to address specific interference or channel allocation challenges.

Antennas RF Part Context

This component belongs to the Antenna Specialist series, designed to address equipment interoperability challenges. It serves as a multi-band solution for synthesized radios, replacing the need for multiple narrowband antennas. The product line emphasizes superior bandwidth coverage and robust physical construction for demanding environments.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and cabling before sourcing alternatives.
