ATGGLTE80014M-CD

Antennas RF Overview

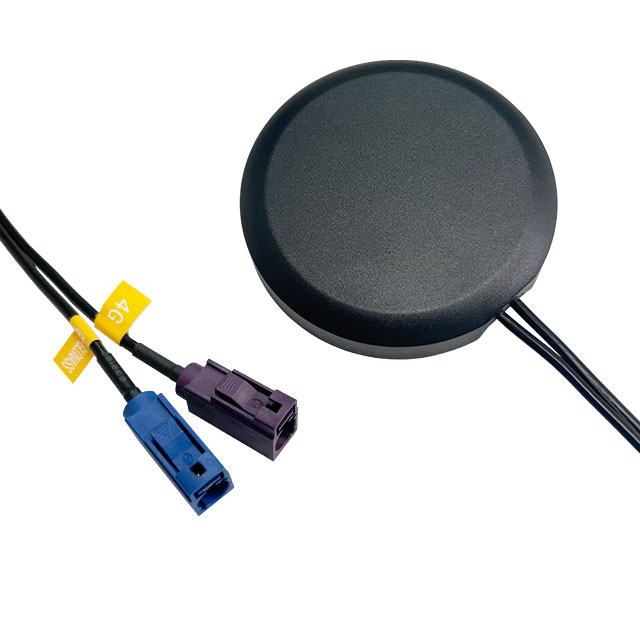

The YIC ATGGLTE80014M-CD is a dual-band RF antenna designed for combined GNSS and 4G LTE module applications. It operates across specific frequency bands including 855MHz, 1.575GHz, 1.602GHz, and 2.2GHz. The device supports frequency ranges of 750MHz to 960MHz and 1.71GHz to 2.69GHz. Key electrical specifications include a gain of 4dBic. The physical configuration utilizes a magnetic mounting base with two Fakra connectors. A standard cable length of 3 meters is provided.

Antennas RF Feature Summary

• Combines GNSS and 4G/LTE signal reception in a single unit
• Features magnetic mounting for secure installation
• Utilizes Fakra connector interface for connectivity

Antennas RF Applications

• GNSS positioning systems
• 4G LTE communication modules
• GLONASS navigation devices
• Integrated vehicle telematics units

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the official YIC datasheet before ordering. Confirm that the magnetic mounting base meets the mechanical constraints of the intended installation environment. Ensure compatibility with the host device's Fakra port specifications to guarantee proper signal integrity and physical fit.

Antennas RF Selection Notes

Select this component when a unified solution for both Global Navigation Satellite System and cellular data transmission is required. The integrated design reduces space consumption compared to separate antennas. Consider the magnetic attachment method if non-permanent or easily accessible mounting is preferred over fixed structural integration.

Antennas RF Part Context

This model belongs to the YIC ATGGLTE series, which focuses on multi-functional antenna solutions. The series typically addresses the need for compact, high-performance RF components that support multiple wireless standards simultaneously. This specific part integrates GPS, GLONASS, and LTE capabilities into one assembly.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact pinout and frequency response matches if considering alternative manufacturers. Cross-reference mechanical dimensions and connector types carefully to ensure interchangeability without modification.
