ATIGG2540

$3.56

Description：RF ANT GNSS/GPS CER PATCH IPEX
Series：ATIGG
Mfr：YIC
Package：Tray

SKU:951e79158a23 Category: RF Antennas Brand: YIC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ATIGG2540 is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is RF ANT GNSS/GPS CER PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ATIGG2540

Description：RF ANT GNSS/GPS CER PATCH IPEX
Series：ATIGG
Mfr：YIC
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.6085GHz
Frequency Range：1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2dBi
Features：Cable - 60mm, LNA, Filter
Termination：I-PEX MHF
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.157" (4.00mm)
Applications：GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for ATIGG2540

ATIGG2540

Antennas RF Overview

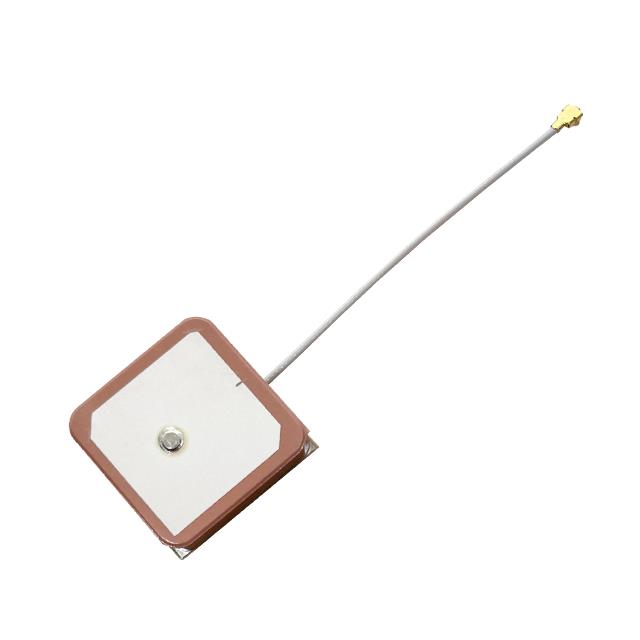

The YIC ATIGG2540 is a ceramic patch antenna designed for GNSS and GPS applications. It operates within the UHF frequency range, specifically covering 1.575 GHz and 1.6085 GHz. The component features right-hand circular polarization (RHCP) with a gain of 2 dBi. It utilizes an I-PEX MHF surface mount interface and includes a 60 mm cable. The physical dimensions are 25x25 mm.

Antennas RF Feature Summary

Supports GLONASS and GPS signal reception
Utilizes ceramic patch construction for durability
Features integrated I-PEX MHF connector interface

Antennas RF Applications

GNSS receiver modules
GPS tracking devices
Navigation systems

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and polarization type. Confirm the connector type is compatible with the host board design. Ensure the cable length meets the system integration requirements before finalizing the order.

Antennas RF Selection Notes

Select this component when a compact internal antenna solution is required for GPS and GLONASS applications. Consider the 25x25 mm form factor and 60 mm cable length for spatial constraints. Verify compatibility with the I-PEX MHF interface on the target PCB.

Antennas RF Part Context

This component belongs to the family of RF antennas manufactured by Yuechung International Corp. It is categorized under GNSS and GPS internal antennas. The product is distinct from medical vaccine formulations sharing similar acronyms in other industries.
