AU-30.000MBE-T

Oscillators Overview

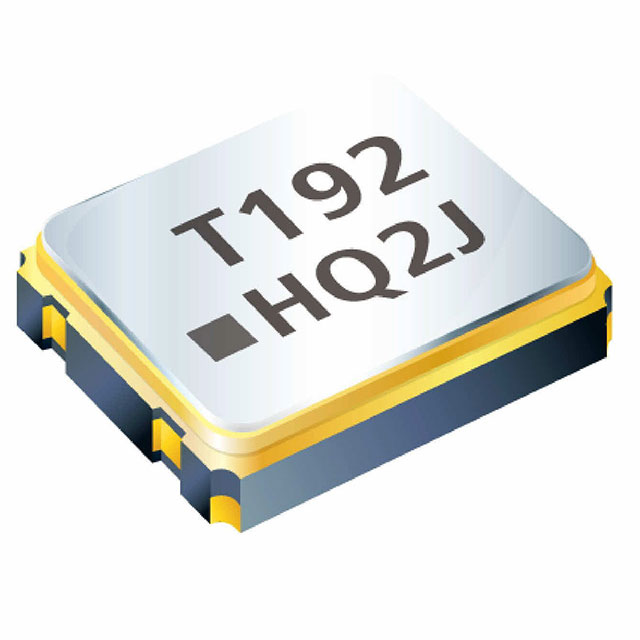

The AU-30.000MBE-T is a standard clock oscillator manufactured by TXC Corporation, designed for automotive applications with AEC-Q100 certification. It operates at a nominal frequency of 30 MHz with a stability of ±50 ppm. The device utilizes a CMOS output format and requires a single 3.3 V power supply. It features an enable/disable control function and is housed in a compact 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm x 1.1 mm. The component supports a wide operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• AEC-Q100 certified for automotive grade reliability
• Integrated enable and disable control functionality
• CMOS output signal format
• Compact surface-mount package design

Oscillators Applications

• Automotive electronic systems
• Standard clock timing circuits
• Embedded system synchronization

Oscillators Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging configuration as per manufacturer standards. Confirm that the AEC-Q100 qualification status aligns with target automotive application requirements. Ensure the 3.3V supply voltage matches the host circuit design constraints before procurement.

Oscillators Selection Notes

Select this component when a 30 MHz reference clock is required for automotive-grade environments. The CMOS output interface suits digital logic inputs directly. The enable/disable pin allows for power management optimization in battery-operated or sleep-mode capable designs within the specified temperature range.

Oscillators Part Context

This part belongs to the AU series of standard oscillators from TXC Corporation. The series focuses on providing reliable quartz-based timing solutions for automotive electronics. The AU-30.000MBE-T represents a specific frequency variant within this family, sharing common package dimensions and electrical characteristics with other members.

Oscillators Replacement Considerations

Direct substitutes must match the 30 MHz frequency, 3.3V supply, CMOS output, and AEC-Q100 certification. Verify pin compatibility and enable/disable functionality. Cross-reference with other TXC AU series parts or equivalent automotive-grade oscillators from other manufacturers.
