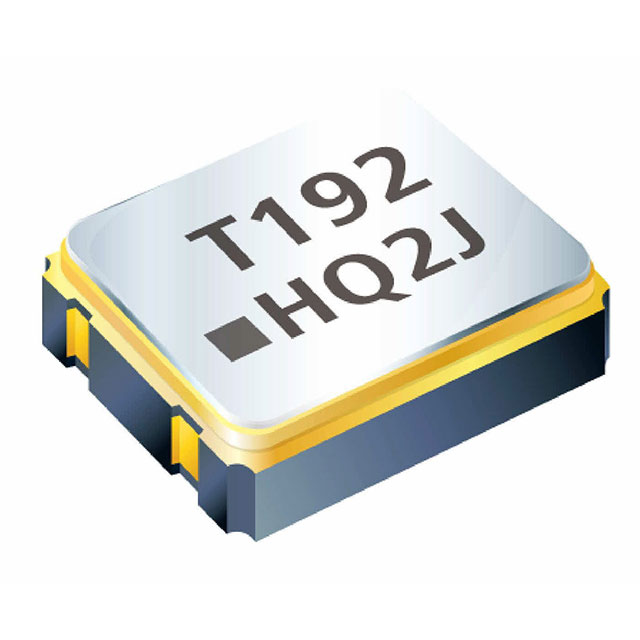

AU-33.000MBE-T

$2.03

Description：XTAL OSC XO 33.0000MHZ CMOS SMD
Series：AU
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9e3213b3f882 Category: Oscillators Brand: TXC CORPORATION

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AU-33.000MBE-T is listed in the Oscillators range at ChipApex. The manufacturer field lists TXC CORPORATION. Its product description is XTAL OSC XO 33.0000MHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for AU-33.000MBE-T

Description：XTAL OSC XO 33.0000MHZ CMOS SMD
Series：AU
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：33 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：6mA
Ratings：AEC-Q100
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.043" (1.10mm)
Supplier Device Package：-

Oscillators datasheet and documents for AU-33.000MBE-T

AU-33.000MBE-T

Oscillators Overview

The AU-33.000MBE-T is a standard crystal oscillator manufactured by TXC Corporation, operating at a frequency of 33 MHz with CMOS output format. It functions on a single 3.3 V supply voltage and offers a frequency stability of ±50 ppm across an industrial temperature range of -40°C to +85°C. The device features an enable/disable control function and is housed in a compact 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm x 1.1 mm. It holds AEC-Q100 qualification for automotive applications.

Oscillators Feature Summary

Features CMOS output format for digital interface compatibility
Includes enable/disable control functionality for power management
Qualified under AEC-Q100 standards for automotive reliability

Oscillators Applications

Automotive electronic systems requiring certified timing components
Industrial equipment needing stable clock signals within specified temperature ranges
Consumer electronics utilizing surface-mount oscillators

Oscillators Procurement Notes

Verify the specific ordering suffix and package variant against the official manufacturer datasheet before procurement. Confirm that the component meets AEC-Q100 requirements if intended for automotive use. Ensure the supply voltage matches the 3.3 V specification and check the lead time availability through authorized distributors.

Oscillators Selection Notes

Select this component when a 33 MHz CMOS clock signal is required with ±50 ppm stability. Consider the 3.2 mm x 2.5 mm footprint for space-constrained designs. Verify compatibility with the system's 3.3 V logic levels and ensure the enable/disable pin can be utilized for power optimization strategies.

Oscillators Part Context

This part belongs to the AU series of standard oscillators from TXC Corporation. It is designed for general-purpose timing applications where size and reliability are critical factors. The series supports various frequencies and packages, catering to diverse electronic design needs across multiple industries.
