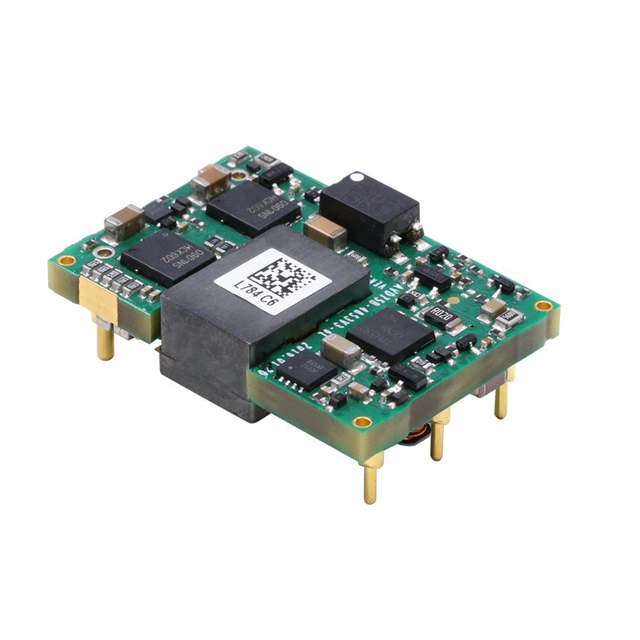

AVD75B-48S3V3TL

AVD75B-48S3V3TL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 75W, 36 - 75VIN, SINGLE, 3.3V@23. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AVD75B-48S3V3TL

• Description：75W, 36 - 75VIN, SINGLE, 3.3V@23
• Series：AVD75 (75W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：23A
• Power (Watts)：76 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：91.50%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cUL, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AVD75B-48S3V3TL
