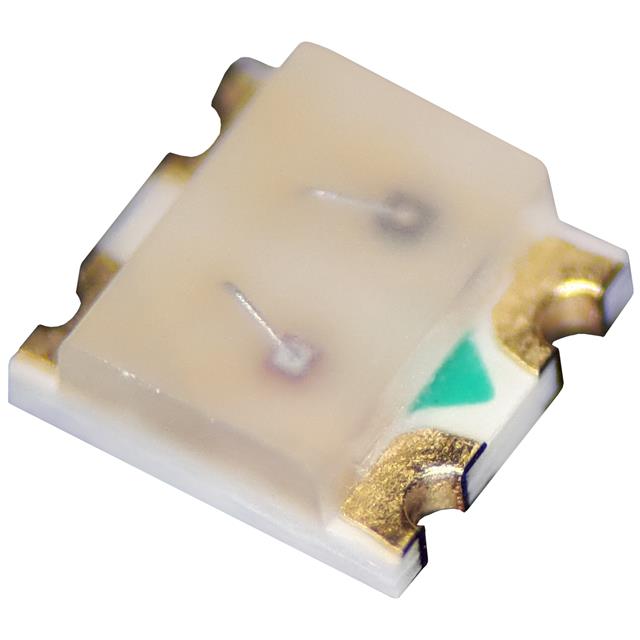

Description：LED RED/YL-GRN DIFFUSED 0606 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b7346342529b Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B2642USUG20D000113U1930 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Harvatek Corporation. Its product description is LED RED/YL-GRN DIFFUSED 0606 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for B2642USUG20D000113U1930

Description：LED RED/YL-GRN DIFFUSED 0606 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Yellow-Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Diffused
Millicandela Rating：71.5mcd Red, 45mcd Yellow-Green
Lens Style：Rectangle with Flat Top
Lens Size：1.50mm x 1.10mm
Voltage - Forward (Vf) (Typ)：2V Red, 2.1V Yellow-Green
Current - Test：20mA Red, 20mA Yellow-Green
Viewing Angle：120°, 130°
Mounting Type：Surface Mount
Wavelength - Dominant：624nm Red, 571nm Yellow-Green
Wavelength - Peak：632nm Red, 573nm Yellow-Green
Features：-
Package / Case：0606 (1616 Metric)
Supplier Device Package：606
Size / Dimension：1.60mm L x 1.50mm W
Height (Max)：0.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for B2642USUG20D000113U1930

B2642USUG20D000113U1930

LED Indication - Discrete Overview

The B2642USUG20D000113U1930 is a dual-color surface-mount LED from Harvatek Corporation, featuring red and yellow-green outputs in a compact 0606 (1616 Metric) package. It operates with a typical forward voltage of 2V for the red channel and 2.1V for the yellow-green channel. The device emits light at peak wavelengths of 624nm (red) and 571nm (yellow-green). It provides a luminous intensity of 71.5mcd and utilizes a rectangular lens with a flat top design. The component is rated for a test current of 20mA per color.

LED Indication - Discrete Feature Summary

Dual-color configuration combining red and yellow-green emission sources within a single SMD footprint
Compact 0606 package dimensions suitable for space-constrained PCB layouts
Rectangular lens style with a flat top surface for consistent light distribution

LED Indication - Discrete Applications

Status indication on electronic circuit boards
Visual signaling in consumer electronics devices
Panel indicators for appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct binning and packaging configuration matches your assembly requirements. Confirm that the 0606 package dimensions align with your PCB footprint design. Check moisture sensitivity level handling procedures during storage and reflow soldering processes to maintain component integrity.

LED Indication - Discrete Selection Notes

Select this component when a dual-color status indicator is required in a minimal footprint area. Consider the specific wavelength outputs for visibility requirements against ambient lighting conditions. Ensure the forward voltage characteristics are compatible with the driving circuitry limits of the target application system.

LED Indication - Discrete Part Context

This part belongs to Harvatek Corporation's surface-mount LED product line, designed for modern electronics manufacturing. It represents a solution for integrating multiple optical signals into a standard small-outline package format commonly used in automated pick-and-place assembly processes.
