BB-2J7041BGFA-300

$200.50

Description：ANT 3IN1 LTE MIMO, GPS, DOME SCR
Series：-
Mfr：Advantech Corporation
Package：Bulk

SKU:0c92870f1b29 Category: RF Antennas Brand: Advantech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-2J7041BGFA-300 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Advantech Corporation. Its product description is ANT 3IN1 LTE MIMO, GPS, DOME SCR. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB-2J7041BGFA-300

Description：ANT 3IN1 LTE MIMO, GPS, DOME SCR
Series：-
Mfr：Advantech Corporation
Package：Bulk
RF Family/Standard：Cellular, Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.6GHz
Frequency Range：698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type：Dome
Number of Bands：5
VSWR：1.5, 1.6, 1.7, 1.9
Return Loss：-16.5dB, -15.6dB, -14dB, -11dB
Gain：3dBi, 28dBi, 28dBi, 4.2dBi, 3.1dBi
Features：Cable - 3m
Termination：SMA Male
Ingress Protection：IP67, IP69
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：3.543" (90.00mm)
Applications：2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, LTE, QZSS
Power - Max：25 W

Antennas RF datasheet and documents for BB-2J7041BGFA-300

BB-2J7041BGFA-300

Antennas RF Overview

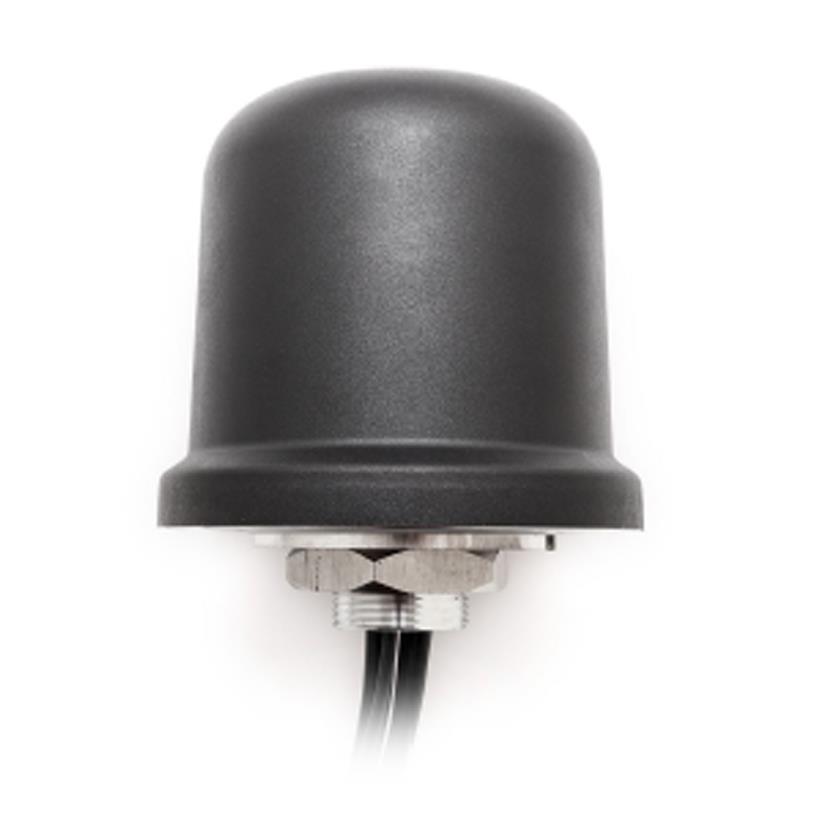

The Advantech BB-2J7041BGFA-300 is a heavy-duty, compact 3-in-1 dome antenna integrating two 4G LTE MIMO elements and an active GNSS element for GPS, GLONASS, Galileo, and BDS. It features screw mounting with anti-rotation design. The unit includes three cables, each 3 meters in length. Connectors consist of two SMA male ports for LTE and one SMA male port for GNSS. Physical dimensions are 96 x 90 mm. The antenna holds IP67, IP69, and IK09 certifications.

Antennas RF Feature Summary

Integrates dual 4G LTE MIMO elements with active GNSS reception
Heavy-duty construction with screw mount and anti-rotation mechanism
High ingress protection ratings for harsh environments

Antennas RF Applications

Industrial IoT gateways
Machine automation systems
Embedded computing installations

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm cable length and connector types match project requirements. Ensure the active GNSS element power supply aligns with the host device's DC output capabilities. Confirm that the SMA male connectors are compatible with the existing RF interface hardware. Check environmental certifications against site-specific durability standards.

Antennas RF Selection Notes

Select this model when simultaneous high-speed cellular data and precise satellite positioning are required in a single physical footprint. The integrated design reduces cabling complexity compared to separate antennas. Consider the heavy-duty build for outdoor or vibration-prone industrial settings where standard antennas may fail.

Antennas RF Part Context

This component belongs to Advantech’s line of cellular and GNSS antennas designed for embedded systems. It complements their fanless industrial computers and IoT intelligent systems by providing reliable wireless connectivity solutions for Industry 4.0 applications.
