Description：ANT LTE 4G 3G 2G ULT WB SMA-M
Series：-
Mfr：Advantech Corporation
Package：Bulk

SKU:b0133bb8a452 Category: RF Antennas Brand: Advantech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-2JW0124Z-C868B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Advantech Corporation. Its product description is ANT LTE 4G 3G 2G ULT WB SMA-M. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB-2JW0124Z-C868B

Description：ANT LTE 4G 3G 2G ULT WB SMA-M
Series：-
Mfr：Advantech Corporation
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type：Blade, Tilt
Number of Bands：8
VSWR：2.4, 1.6, 2.2
Return Loss：-7.7dB, -12.7dB, -8.5dB
Gain：0.4dBi, 2.6dBi, 1.3dBi
Features：-
Termination：SMA Male, RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：7.657" (194.50mm)
Applications：2G, 3G, 4G, CDMA, DCS, EVDO, GSM, GPRS, HSPA, PCS, LTE, UMTS, WCDMA
Power - Max：25 W

Antennas RF datasheet and documents for BB-2JW0124Z-C868B

BB-2JW0124Z-C868B

Antennas RF Overview

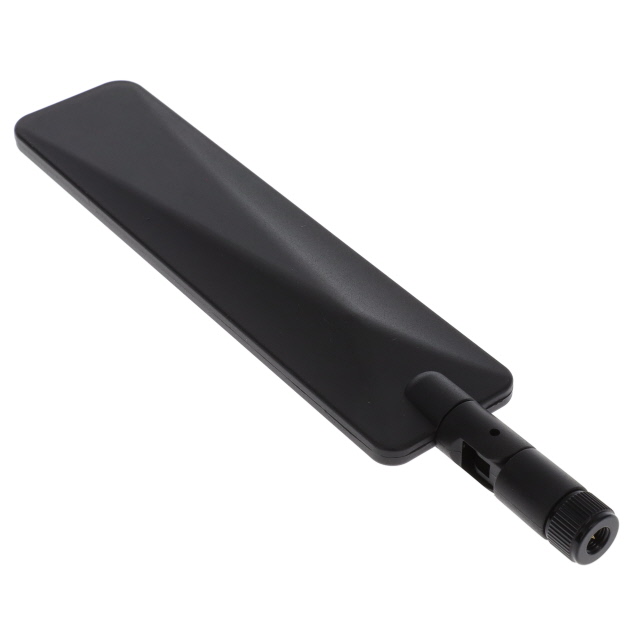

The Advantech BB-2JW0124Z-C868B is an ultra-wideband terminal antenna designed for worldwide cellular applications. It supports 4G LTE, 3G UMTS, and 2G GSM technologies. The unit features a blade form factor with tilt capability and utilizes an SMA male connector. The frequency range covers 698-960 MHz and 1710-2170 MHz.

Antennas RF Feature Summary

Ultra-wideband performance supporting 4G, 3G, and 2G standards
Blade design with tilt functionality for flexible mounting
SMA male connector interface

Antennas RF Applications

Cellular routers using LTE technology
Worldwide cellular communication systems
Industrial wireless connectivity modules

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with the intended device interface. Confirm that the SMA male connector matches the host equipment port. Check regional regulatory approvals if deploying in restricted zones. Ensure the blade form factor fits the available installation space. Validate frequency coverage against local carrier bands.

Antennas RF Selection Notes

Select this model when broad spectrum coverage across multiple generations of cellular networks is required. The tilt feature aids in optimizing signal reception in constrained environments. Verify that the SMA male interface aligns with existing cabling infrastructure. Consider the blade size relative to the mounting location constraints.

Antennas RF Part Context

This component belongs to Advantech's industrial wireless communication product line. It serves as a peripheral accessory for embedded computing and router platforms. The antenna complements internal modem solutions by providing external signal acquisition capabilities for reliable data transmission.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official distributor catalogs for cross-reference options or contact Advantech technical support for compatible alternatives.
