BB-ACH2-DBAT-DP002

Antennas RF Overview

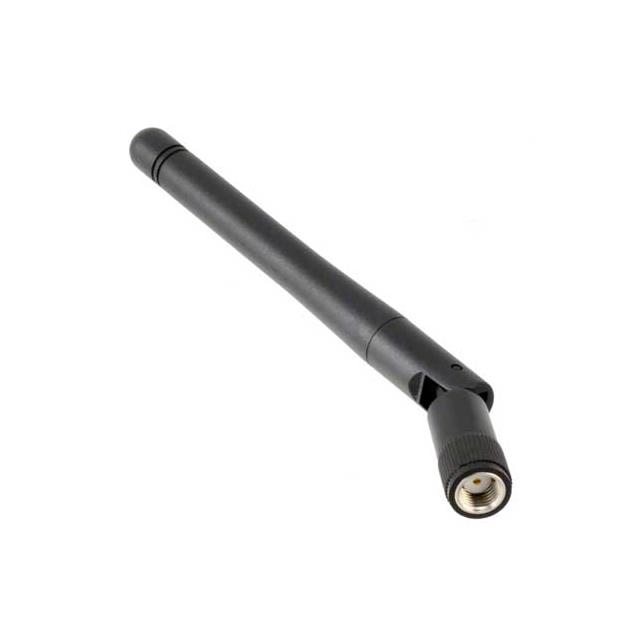

The Advantech BB-ACH2-DBAT-DP002 is a dual-band RF antenna designed for wireless communication applications. It operates across the 2.4 GHz and 5 GHz frequency bands, supporting standard industrial IoT connectivity protocols. The component features a whip-style design with tilt functionality to optimize signal orientation. It utilizes an RP-SMA connector interface for secure attachment to compatible radio modules or gateways. The unit provides a gain of 2 dBI, ensuring reliable data transmission in various deployment environments.

Antennas RF Feature Summary

• Dual-band operation covering 2.4 GHz and 5 GHz frequencies
• Whip-style construction with adjustable tilt mechanism
• RP-SMA connector interface for standardized integration

Antennas RF Applications

• Industrial IoT gateways requiring dual-band connectivity
• Remote monitoring systems utilizing 2.4/5 GHz radios
• Embedded computing platforms needing external RF antennas

Antennas RF Procurement Notes

Verify that the host device supports both 2.4 GHz and 5 GHz bands to utilize the full capability of this dual-band antenna. Confirm the presence of an RP-SMA female port on the target equipment, as male-to-male connections are incompatible. Ensure the mechanical mounting space accommodates the whip length and tilt range. Cross-reference the part number with official Advantech documentation to confirm compatibility with specific gateway models before procurement.

Antennas RF Selection Notes

Select this component when dual-band flexibility is required for interference mitigation or bandwidth expansion in industrial settings. The tilt feature allows for directional optimization where fixed orientations may suffer from signal blockage. Consider the 2 dBI gain level against environmental noise floors. This antenna is suitable for applications where compact form factor and standard connector types are prioritized over high-gain performance.

Antennas RF Part Context

This antenna belongs to Advantech’s portfolio of accessories for industrial automation and IoT solutions. It complements their range of gateways, controllers, and embedded computers by providing essential wireless connectivity hardware. The product supports the company’s focus on enabling seamless data acquisition and real-time monitoring across OT and IT systems.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing radio modules before attempting substitution.
