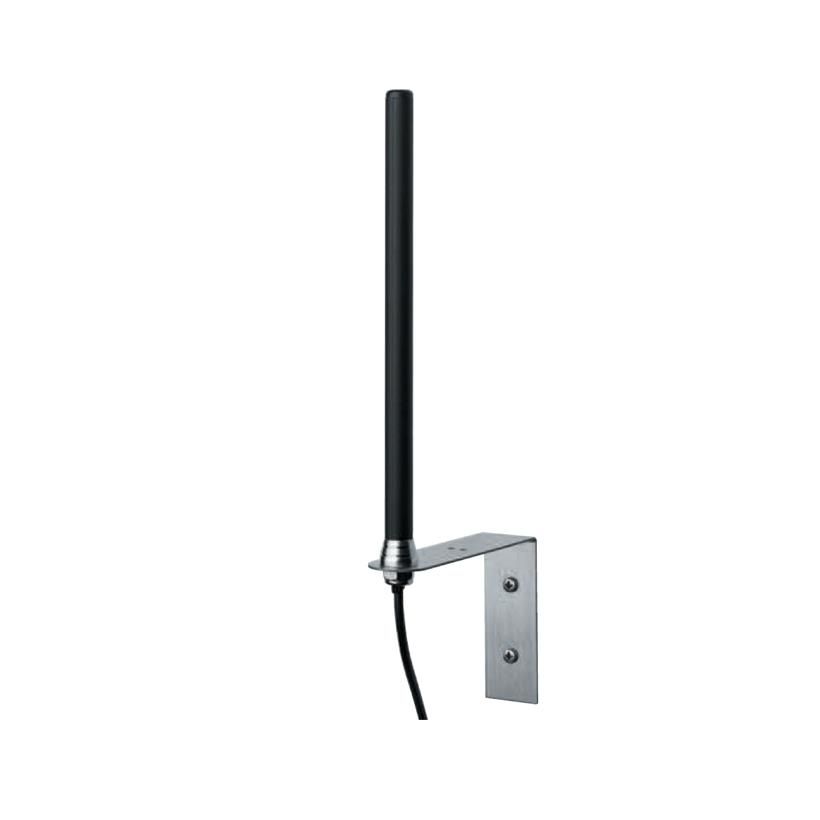

BB-CEL8026STAT

$88.06

Description：ANT,OUTDOOR,WALL GSM/UMTS/LTE 5D
Series：-
Mfr：Advantech Corporation
Package：Bulk

SKU:d1459178f44a Category: RF Antennas Brand: Advantech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-CEL8026STAT is listed in the Antennas RF range at ChipApex. The manufacturer field lists Advantech Corporation. Its product description is ANT,OUTDOOR,WALL GSM/UMTS/LTE 5D. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB-CEL8026STAT

Description：ANT,OUTDOOR,WALL GSM/UMTS/LTE 5D
Series：-
Mfr：Advantech Corporation
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：826MHz, 892MHz, 1.94GHz, 2.595GHz
Frequency Range：790MHz ~ 862MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
Antenna Type：Whip, Straight
Number of Bands：4
VSWR：2
Return Loss：5.1dB
Gain：5.1dBi, 5dBi, 5dBi, 5dBi
Features：Cable - 1.5m
Termination：SMA Male
Ingress Protection：IP66
Grade：-
Qualification：-
Mounting Type：Wall Mount
Height (Max)：10.118" (257.00mm)
Applications：2G, 3G, 4G, LTE
Power - Max：-

Antennas RF datasheet and documents for BB-CEL8026STAT

BB-CEL8026STAT

Antennas RF Overview

The Advantech BB-CEL8026STAT is an outdoor cellular antenna designed for fixed wall mounting. It supports GSM, UMTS, and LTE frequency bands with a gain of 5 dBi. The connector type is SMA male, and the cable length is 5 meters. The radiation pattern is omnidirectional, ensuring consistent signal coverage in all horizontal directions.

Antennas RF Feature Summary

Omnidirectional radiation pattern for uniform signal distribution
Designed for fixed outdoor wall mounting applications
Supports GSM, UMTS, and LTE cellular communication standards

Antennas RF Applications

Industrial IoT gateways requiring cellular connectivity
Outdoor machine automation systems
Embedded computing installations in transportation environments

Antennas RF Procurement Notes

Verify that the SMA connector matches the device interface. Confirm the 5-meter cable length fits the installation layout. Ensure the antenna is rated for the specific environmental conditions of the deployment site. Check compatibility with the target cellular module's supported bands.

Antennas RF Selection Notes

Select this model when a fixed outdoor solution is required for cellular data transmission. The 5 dBi gain provides adequate performance for standard industrial deployments. Consider cable routing constraints due to the 5-meter length. Validate support for the specific network technologies used in the target region.

Antennas RF Part Context

This component belongs to Advantech's networking accessories portfolio, supporting their embedded computing and IoT solutions. It complements fanless industrial computers and wireless RTUs by providing reliable external cellular connectivity for remote data acquisition and control applications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and connector types before considering alternative models.
