BB1360WS

Antennas RF Overview

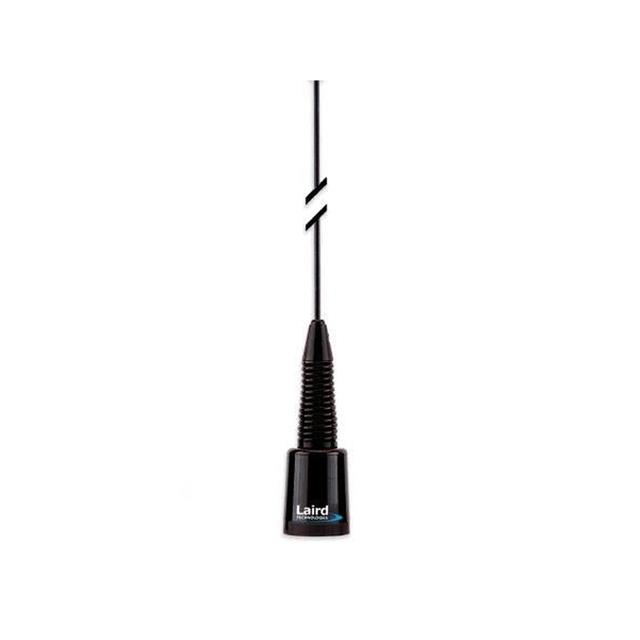

The BB1360WS is a VHF whip antenna manufactured by TE Connectivity, designed for mobile vehicular applications. It operates within the 136MHz to 174MHz frequency range with a center frequency of 155MHz. The antenna features a straight whip design and provides a gain of 4dBi. It supports a maximum power input of 100W and maintains a voltage standing wave ratio (VSWR) of 2. The unit utilizes an NMO connector interface and employs a magnetic base mounting method. The maximum height of the assembly is 495.30mm.

Antennas RF Feature Summary

• Straight whip antenna design optimized for mobile vehicular communication
• Magnetic base mounting system for external installation
• NMO connector interface for standard vehicle integration

Antennas RF Applications

• Mobile vehicular radio communications
• VHF band data transmission systems
• Emergency service vehicle equipment

Antennas RF Procurement Notes

Verify the specific manufacturer designation when sourcing, as listings may reference Laird Technologies or TE Connectivity for this part number. Confirm that the NMO connector type matches the vehicle mount hardware. Ensure the operating frequency range aligns with the required 136MHz to 174MHz spectrum. Check RoHS compliance status if environmental regulations apply to the deployment environment.

Antennas RF Selection Notes

Select this model for applications requiring a high-gain vertical radiator in the VHF band. The magnetic mounting allows for non-permanent installation on metal surfaces. Consider the physical height constraint of approximately 495mm for vehicle clearance. The 100W power rating suits standard two-way radio transceivers. Verify compatibility with existing NMO mounts before procurement.

Antennas RF Part Context

This component belongs to the family of mobile RF antennas intended for professional communication systems. It serves as a replacement or upgrade for legacy vehicular antenna setups. The product line focuses on durable outdoor performance and reliable signal propagation in the VHF spectrum. TE Connectivity designs these units for harsh operational environments.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with the original equipment manufacturer's specifications to ensure mechanical fit and electrical impedance matching before considering alternative models.
