BG302-02-A-L-G

Headers, Receptacles, Female Sockets Overview

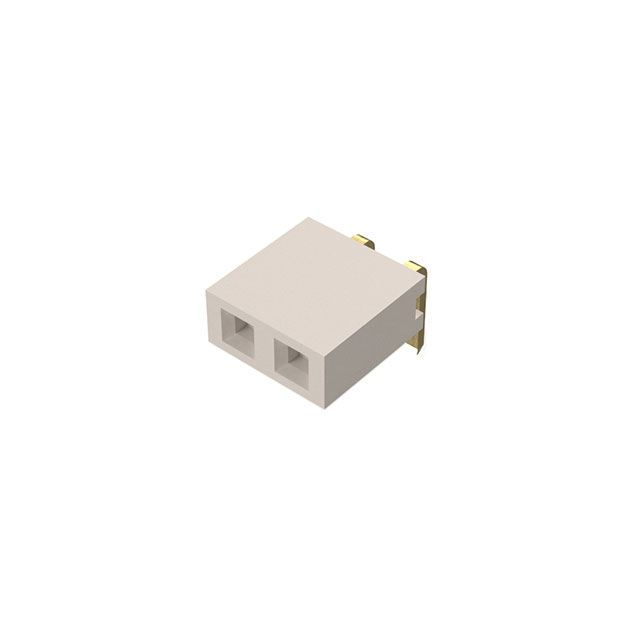

The BG302-02-A-L-G is a board-to-board connector socket from the White Lite series by GCT. It features a 2.54 mm pitch with two contacts arranged in a single row. The component utilizes through-hole mounting and offers a right-angle orientation for PCB integration. The housing is constructed from natural LCP material, while the contacts are gold-plated copper alloy. It operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle through-hole mounting configuration
• Gold-plated contact termination
• Natural LCP housing construction

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine connector applications
• High-density PCB layouts

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific suffix matches the required pin count and orientation. Confirm that the gold plating specification aligns with the intended electrical requirements. Ensure the through-hole footprint dimensions match the target PCB design before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile right-angle socket is required for direct board stacking. The 2.54 mm pitch ensures compatibility with standard header pins. Consider the mechanical stability provided by the through-hole soldering method for robust connections.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the BG302 series, which provides various contact counts and configurations. The '02' indicates a two-position layout, while 'L' denotes the natural color and 'G' specifies the gold contact finish. It serves as a vertical or angled interface solution within the broader connector family.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for exact pin count and pitch matching. Verify that any substitute maintains the same right-angle orientation and through-hole mounting style to ensure physical compatibility with existing PCB footprints.
