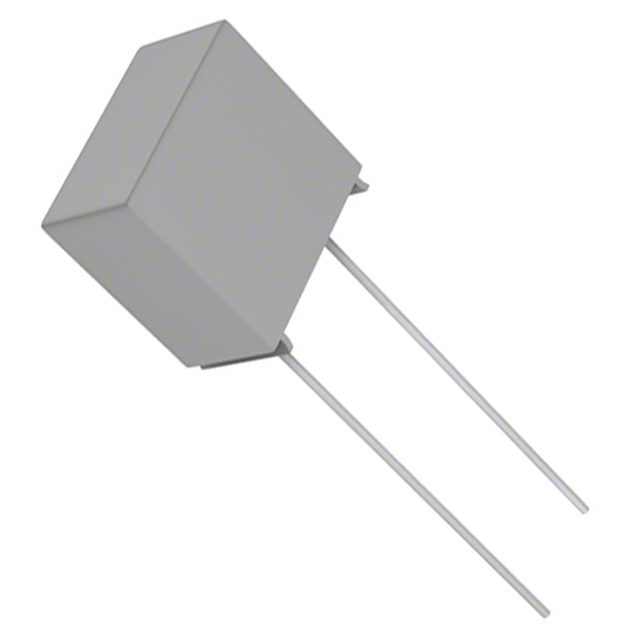

BK/PCC-3-R

BK/PCC-3-R is listed in the Fuses range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FUSE BRD MT 3A 250VAC 450VDC RAD. Review the specifications below when checking this part for your BOM.

Fuses specifications for BK/PCC-3-R

• Description：FUSE BRD MT 3A 250VAC 450VDC RAD
• Series：PC-Tron®
• Mfr：Eaton - Electronics Division
• Package：Bulk
• Mounting Type：Through Hole
• Fuse Type：Board Mount (Cartridge Style Excluded)
• Current Rating (Amps)：3:00 AM
• Voltage Rating - DC：450 V
• Response Time：Fast Blow
• Package / Case：Radial, Box
• Breaking Capacity @ Rated Voltage：50A AC, 4.4kA DC
• Melting I²t：0.75
• Approval Agency：CSA, UL
• Operating Temperature：-
• Color：-
• Size / Dimension：0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm)
• Voltage Rating - AC：250 V

Fuses datasheet and documents for BK/PCC-3-R
