BL-BJU334V-1

$0.47

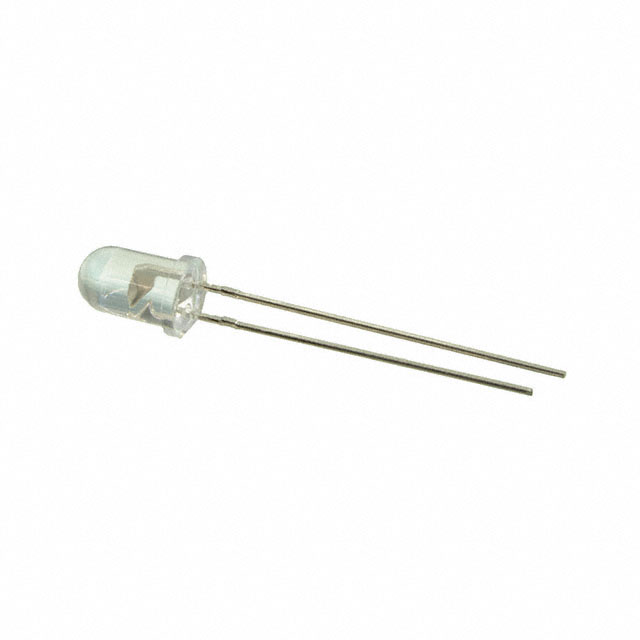

Description：LED ORANGE-RED CLEAR T/H
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Bulk

SKU:adf408f20e0d Category: LED Indication - Discrete Brand: American Bright Optoelectronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BL-BJU334V-1 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists American Bright Optoelectronics Corporation. Its product description is LED ORANGE-RED CLEAR T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for BL-BJU334V-1

Description：LED ORANGE-RED CLEAR T/H
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Bulk
Color：Orange-Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：6000mcd
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：35°
Mounting Type：Through Hole
Wavelength - Dominant：623nm
Wavelength - Peak：625nm
Features：-
Package / Case：-
Supplier Device Package：-
Size / Dimension：-
Height (Max)：8.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for BL-BJU334V-1

BL-BJU334V-1

LED Indication - Discrete Overview

The BL-BJU334V-1 is a single-color orange-red LED from American Bright Optoelectronics Corporation. It features a T-1 (3 mm) through-hole package with a colorless dome lens. The component emits light at a dominant wavelength of 623 nm and a peak wavelength of 625 nm. Key electrical parameters include a forward current of 20 mA, a forward voltage of 2.2 V, and a viewing angle of 35 degrees. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Provides reliable indication lighting with consistent orange-red emission
Utilizes a water-clear dome lens for effective light transmission
Designed for standard through-hole mounting configurations

LED Indication - Discrete Applications

General purpose indicator lights
Control panel status displays
Electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturing updates may occur. Confirm that the required forward voltage aligns with the 2.2 V specification during circuit design. Ensure thermal management strategies accommodate the specified operating temperature range of -40°C to +85°C for long-term reliability in the intended application environment.

LED Indication - Discrete Selection Notes

Select this component when a distinct orange-red visual signal is required in through-hole designs. Consider the 35-degree viewing angle for visibility requirements. Evaluate the 2.2 V forward voltage drop against available drive voltages to ensure proper current limiting resistor selection. Verify mechanical fit within the 3 mm T-1 housing constraints.

LED Indication - Discrete Part Context

This part belongs to the American Bright Optoelectronics Corporation discrete LED portfolio. It serves as a standard indication device within their through-hole series. The product line focuses on providing durable optical components for various electronic assembly needs. It represents a specific wavelength option within their broader color spectrum offerings.
