BMLPV-MBLTE-HP

Antennas RF Overview

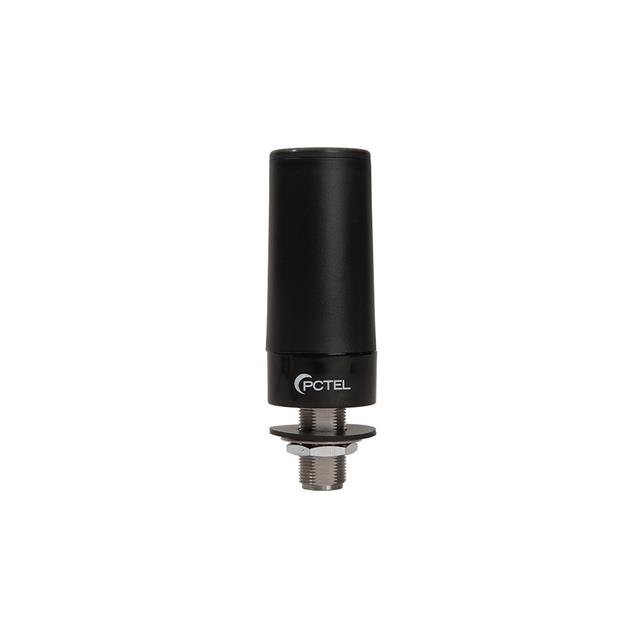

The Amphenol PCTEL BMLPV-MBLTE-HP is a low-profile, whipless vertical antenna designed for LTE cellular applications. It operates across a frequency range of 698 MHz to 2700 MHz, supporting bands including 600-960 MHz, 1710-2170 MHz, and 2300-2700 MHz. The unit features an N Female connector and delivers an average gain of 3 dBi. Constructed with a compact housing measuring 1.44 inches by 3.54 inches in outer diameter, it ensures high system efficiency and pattern coverage for mobile and fixed installations.

Antennas RF Feature Summary

• Whipless low-profile design optimized for space-constrained mobile and fixed environments
• Broadband operation covering multiple LTE frequency bands for superior system efficiency
• Vertical polarization providing consistent omnidirectional pattern coverage

Antennas RF Applications

• Mobile LTE cellular connectivity
• Fixed LTE cellular installations
• Railroad communication systems

Antennas RF Procurement Notes

Verify the specific frequency band requirements against the target network standards before procurement. Confirm that the N Female termination matches the existing cabling infrastructure. Ensure the mechanical dimensions fit within the designated mounting area. Check environmental ratings if the installation location exposes the antenna to harsh conditions. Validate compatibility with the intended base station or radio equipment.

Antennas RF Selection Notes

Select this model when broadband LTE coverage is required without the bulk of traditional whip antennas. It is suitable for applications needing reliable performance in both moving vehicles and stationary setups. Consider the low profile for aesthetic or aerodynamic constraints. Ensure the operating temperature range meets site specifications. Verify that the gain level aligns with the link budget calculations for the specific deployment scenario.

Antennas RF Part Context

This component belongs to the MLPV series from Amphenol PCTEL, which specializes in high-efficiency low-profile antennas. The series is engineered to support modern wireless protocols while maintaining a compact physical footprint. This specific model focuses on LTE frequencies, distinguishing it from broader multi-band variants or dedicated WiFi models within the same product family.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer catalogs for direct equivalents or updated series replacements.
