BOA2177

Antennas RF Overview

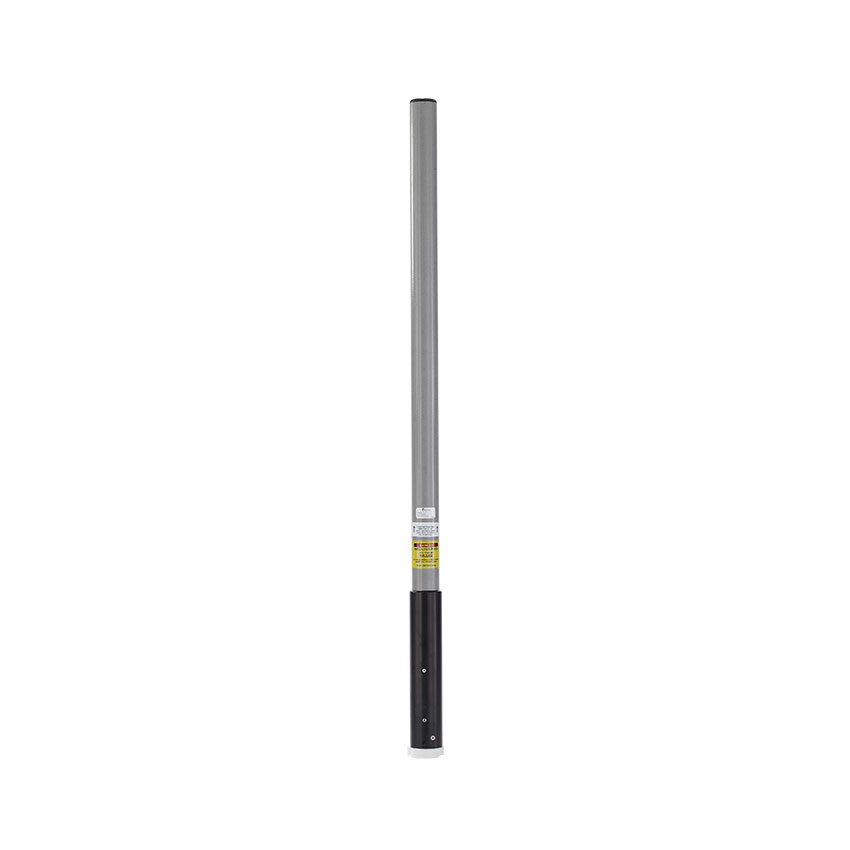

The BOA2177 is a VHF omnidirectional whip antenna manufactured by Amphenol PCTEL. It operates within the 217 MHz to 222 MHz frequency range, with a center frequency of 219.5 MHz. The component provides a gain of 7.1 dBi and features an N-type female bulkhead connector for direct termination. Designed for base station applications, it supports up to 250 W of power and includes lightning protection with DC grounding capabilities.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for base station coverage
• Integrated lightning protection and DC grounded design
• Direct termination via N-type female bulkhead connector

Antennas RF Applications

• VHF base station communication systems
• Public safety radio networks
• Marine communication installations

Antennas RF Procurement Notes

Verify the specific connector configuration and mounting hardware requirements against the official datasheet before ordering. Confirm that the operating frequency aligns with local regulatory bands. Ensure the installation environment supports the specified wind velocity rating and power handling capacity for reliable long-term performance.

Antennas RF Selection Notes

Select this model when a high-gain VHF solution is required for fixed infrastructure. The bulkhead mounting style facilitates secure integration into equipment enclosures or vehicle roofs. Consider the 250 W power rating for high-output transmitter compatibility.

Antennas RF Part Context

This component belongs to the PCTEL line of RF antennas and testing solutions. As an Amphenol company, PCTEL specializes in antenna systems designed for demanding environments. The BOA2177 represents a standard offering for VHF band operations requiring robust mechanical construction and electrical stability.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
