BOAH515905NF

Antennas RF Overview

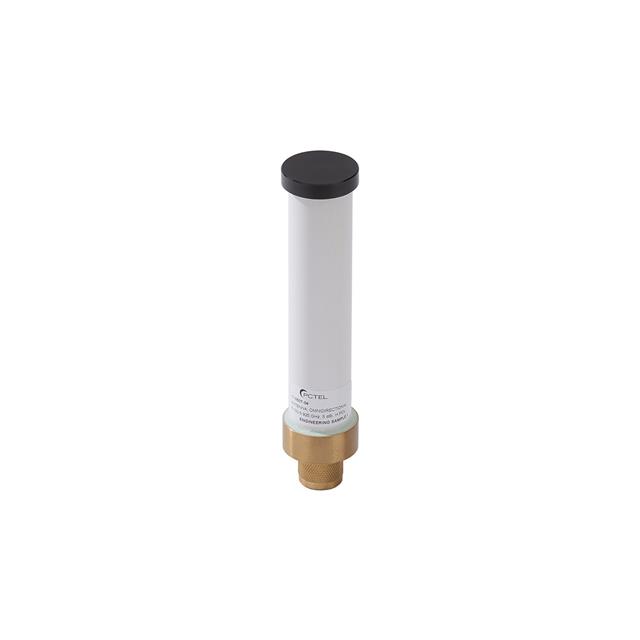

The Amphenol PCTEL BOAH515905NF is a horizontally polarized omnidirectional base station antenna designed for outdoor Wi-Fi and industrial wireless applications. It operates within the 5.1 GHz to 5.9 GHz frequency range, providing a gain of 5 dBi. The unit features an IP67 ingress protection rating and utilizes a Type N female connector. Maximum power handling is rated at 40 W. Mounting options include connector mount and pole mount configurations.

Antennas RF Feature Summary

• Horizontally polarized omnidirectional radiation pattern
• IP67 sealed ruggedized design with UV-stable white radome
• DC grounded construction for environmental durability

Antennas RF Applications

• Outdoor Wi-Fi networks
• Industrial wireless communications
• Enterprise wireless infrastructure
• Military wireless applications

Antennas RF Procurement Notes

Verify the specific connector gender configuration required for the installation site, as Type N Male or Female options may exist across the product family. Confirm that the 5.1–5.9 GHz operational bandwidth aligns precisely with local regulatory spectrum allocations. Ensure mounting hardware supports the specified pole mount or connector mount interface requirements.

Antennas RF Selection Notes

Select this model when horizontal polarization is required to minimize multipath interference in dense urban or industrial environments. The IP67 rating makes it suitable for harsh outdoor conditions where moisture and dust resistance are critical. Consider the 40 W power limit when designing high-power transmission systems.

Antennas RF Part Context

This component belongs to the Amphenol PCTEL base station antenna portfolio, which offers various frequency ranges and designs. The BOAH515905NF specifically targets the 5.1–5.9 GHz band, distinguishing it from other models like the GLPSF-UH6X1HB which covers multiple lower frequency bands including cellular and LTE ranges.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting structures and connector types before considering alternative models.
