BS1850XL6

$85.51

Description：Hi-Pwr Cellular Base Station Ant
Series：-
Mfr：Mobile Mark Antenna Solutions
Package：Bulk

SKU:773da05a9711 Category: RF Antennas Brand: Mobile Mark Antenna Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BS1850XL6 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Mobile Mark Antenna Solutions. Its product description is Hi-Pwr Cellular Base Station Ant. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BS1850XL6

Description：Hi-Pwr Cellular Base Station Ant
Series：-
Mfr：Mobile Mark Antenna Solutions
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.92GHz
Frequency Range：1.85GHz ~ 1.99GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：-
Return Loss：-
Gain：8dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：24.000" (609.60mm)
Applications：General Purpose
Power - Max：250 W

Antennas RF datasheet and documents for BS1850XL6

BS1850XL6

Antennas RF Overview

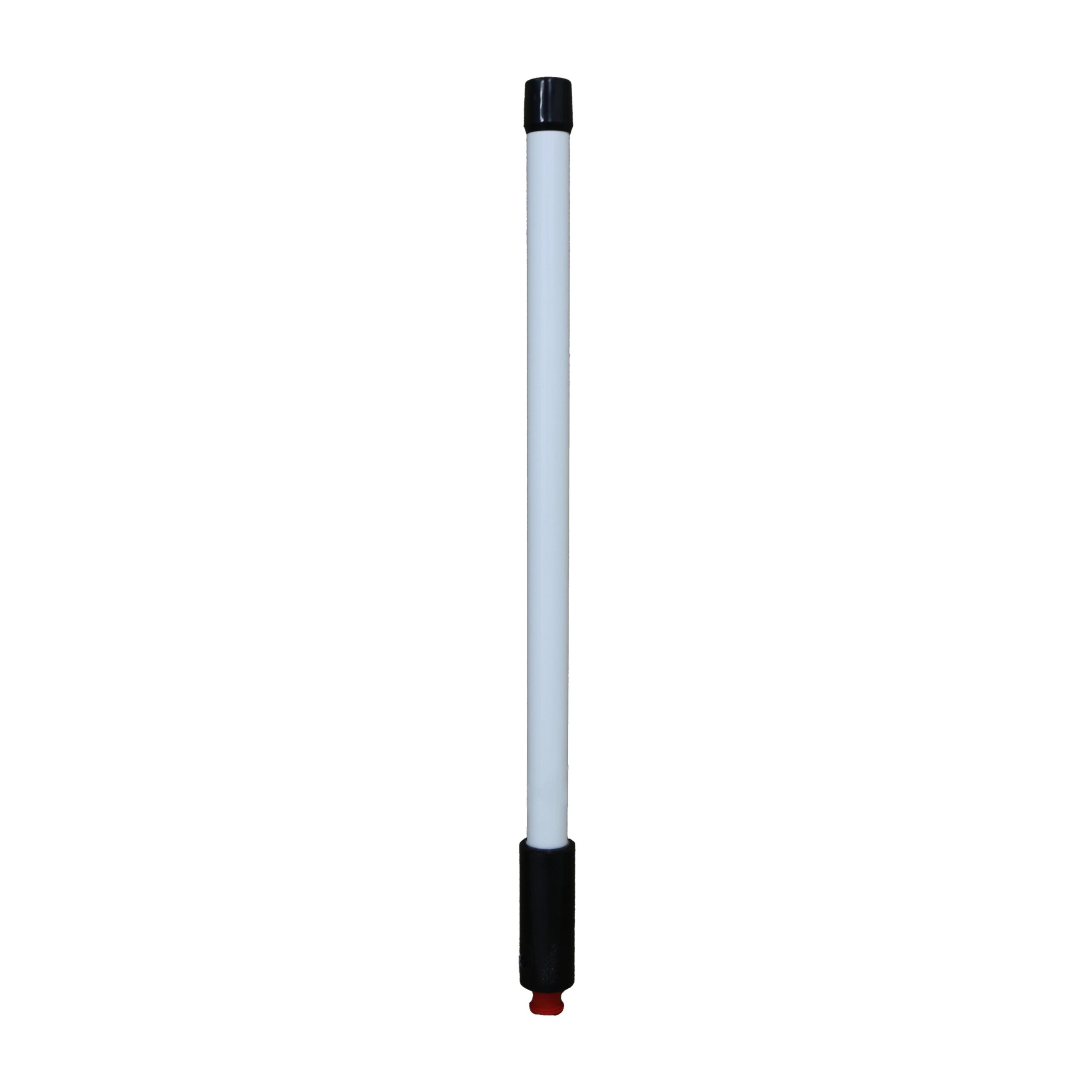

The Mobile Mark BS1850XL6 is a base station antenna designed for the UHF frequency group, specifically operating within the 1.85GHz to 1.99GHz range with a center frequency of 1.92GHz. It features a fiberglass radome and copper radiating elements. The unit supports a power rating of 250 watts and utilizes an N-Type female connector. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 2.

Antennas RF Feature Summary

Constructed with copper and copper alloy radiating elements housed in a rugged fiberglass radome
Equipped with a low-loss N-Type female mating connector for reliable interface
Designed as a dedicated single-band cellular base station antenna

Antennas RF Applications

Cellular base station deployments
UHF band wireless communication infrastructure
Fixed wireless access points

Antennas RF Procurement Notes

Verify the specific datasheet version and connector orientation prior to ordering. Confirm that the 250-watt power rating aligns with your system's transmission requirements. Ensure compatibility with existing mounting hardware and N-Type interfaces. Cross-reference the 1.85-1.99 GHz frequency range with local regulatory bands to ensure operational compliance.

Antennas RF Selection Notes

Select this model when a dedicated single-band solution is required for the 1.85-1.99 GHz spectrum. The fiberglass construction offers durability for outdoor base station environments. Consider the 250-watt capacity for high-power transmitter applications. Verify that the N-Type female connector matches the feed line specifications of the installation site.

Antennas RF Part Context

This component belongs to the BS series of base station antennas from Mobile Mark Antenna Solutions. The series focuses on rugged designs for cellular and UHF applications. The BS1850XL6 specifically targets the 1.85-1.99 GHz band, distinguishing it from other models in the lineup that may cover different frequency ranges or utilize varying connector types.
