BS800S-E

$48.54

Description：Hi-Pwr 900MHz Base Station Anten
Series：-
Mfr：Mobile Mark Antenna Solutions
Package：Bulk

SKU:b3a73825a5dd Category: RF Antennas Brand: Mobile Mark Antenna Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BS800S-E is listed in the Antennas RF range at ChipApex. The manufacturer field lists Mobile Mark Antenna Solutions. Its product description is Hi-Pwr 900MHz Base Station Anten. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BS800S-E

Description：Hi-Pwr 900MHz Base Station Anten
Series：-
Mfr：Mobile Mark Antenna Solutions
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：930MHz
Frequency Range：890MHz ~ 970MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：4dBd
Features：-
Termination：TNC Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Mast Mount
Height (Max)：27.000" (685.80mm)
Applications：General Purpose
Power - Max：100 W

Antennas RF datasheet and documents for BS800S-E

BS800S-E

Antennas RF Overview

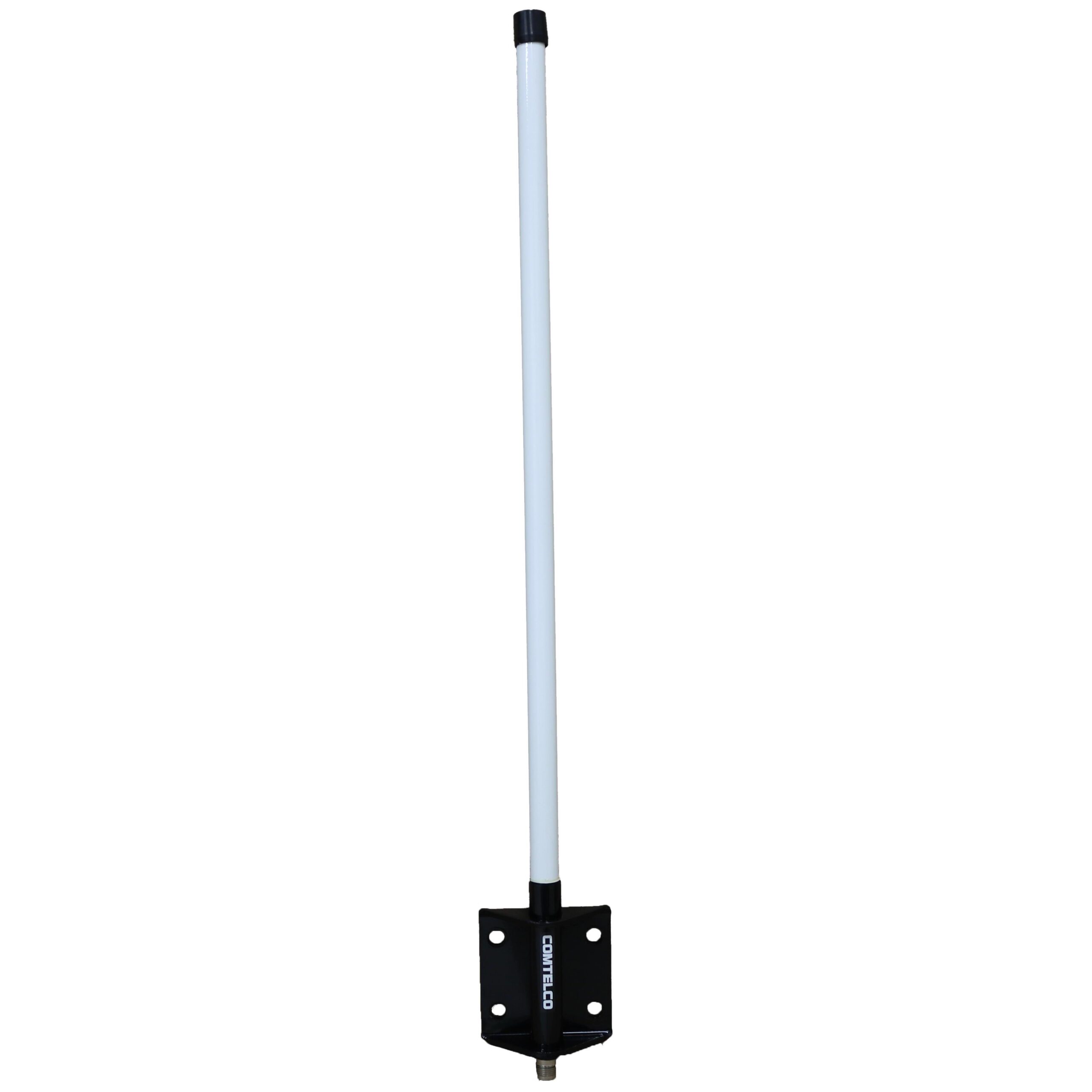

The BS800S-E is a high-power base station antenna designed for land mobile radio applications. It operates within the 890 MHz to 970 MHz frequency range, centered around 930 MHz. The unit features a fiberglass radome and utilizes a TNC female connector for interfacing. Designed for pole or wall mounting, it provides 6 dBi gain. The physical height of the antenna is 27.000 inches (685.80 mm).

Antennas RF Feature Summary

High-power output capability suitable for base station deployment.
Fiberglass radome construction for environmental durability.
Optimized for land mobile radio frequency bands.

Antennas RF Applications

Land mobile radio systems
Base station coverage enhancement
General purpose RF communication infrastructure

Antennas RF Procurement Notes

Verify the specific datasheet for exact electrical performance metrics before integration. Confirm that the TNC female connector interface matches your existing cabling and hardware requirements. Ensure the mounting configuration supports the specified weight and wind load ratings for the intended installation site.

Antennas RF Selection Notes

Select this model when operating within the 890-970 MHz spectrum for land mobile radio needs. Consider the 6 dBi gain and 27-inch height for line-of-sight requirements. Verify compatibility with standard mast or wall mounting structures to ensure secure installation.

Antennas RF Part Context

Mobile Mark Antenna Solutions manufactures antennas ranging from 30 MHz to 7.2 GHz. This product falls under their land mobile radio and cellular solutions portfolio, supporting applications such as fleet management and public transit communications.

Antennas RF Replacement Considerations

Consult official Mobile Mark documentation for direct cross-reference part numbers. Ensure any substitute maintains the 890-970 MHz operational bandwidth and TNC female interface to preserve system integrity.
