C503B-WAN-CCACB151

LED Indication - Discrete Overview

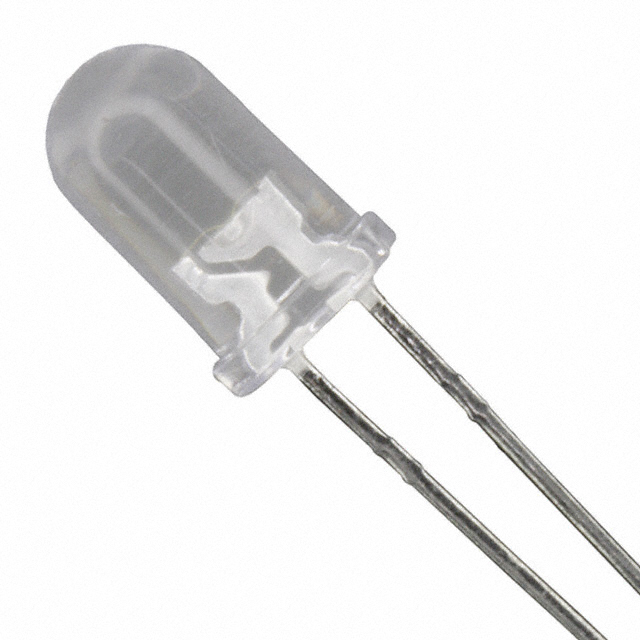

The C503B-WAN-CCACB151 is a 5mm round through-hole LED manufactured by Cree LED. It emits cool white light with a color temperature of 9000K and features a viewing angle of 15 degrees. The component utilizes an advanced optical grade epoxy lens for high temperature and moisture resistance. It operates at a forward current of 20 mA with a typical forward voltage of 3.2 V. The device provides luminous intensity ranging from 14,400 to 32,900 mcd, ensuring excellent readability in sunlight.

LED Indication - Discrete Feature Summary

• Superior light output for excellent readability in sunlight
• Extremely stable light output over long periods of time
• Advanced optical grade epoxy offering superior high temperature and high moisture resistance

LED Indication - Discrete Applications

• Torch
• Light Strip
• Channel Letter
• Retail Display Lighting

LED Indication - Discrete Procurement Notes

Verify the specific binning codes (intensity and color) associated with the suffix CCACB151 against official Cree documentation before procurement. Ensure that the ordering code matches the required performance specifications for the target application. Confirm RoHS compliance status and lead-free status as per the latest datasheet revisions. Cross-reference the part number with authorized distributors to ensure authenticity and traceability.

LED Indication - Discrete Selection Notes

Select this component when high-intensity cool white illumination is required for outdoor or high-visibility applications. The 15-degree viewing angle directs light efficiently, making it suitable for focused lighting needs. Consider the thermal management requirements due to the high luminous intensity. Verify compatibility with existing circuit designs regarding forward voltage and current limits.

LED Indication - Discrete Part Context

This part belongs to the C503B series of 5mm round LEDs from Cree LED. The series is designed for general indication and illumination purposes. The 'WAN' designation typically refers to white light variants within this family. These components are engineered for reliability in demanding environments, leveraging Cree's proprietary packaging technology.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 5mm through-hole cool white LEDs with similar luminous intensity and viewing angle specifications. Verify pinout compatibility and electrical characteristics such as forward voltage and current ratings. Check for equivalent thermal and environmental resistance properties.
