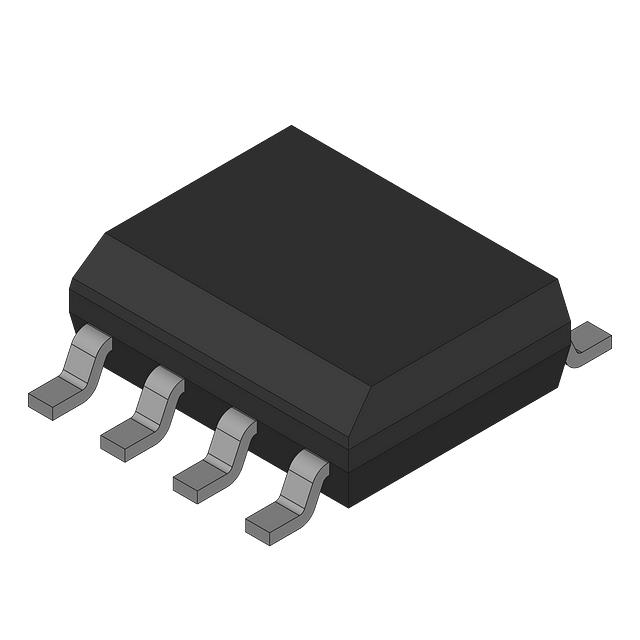

CA3140AM
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC OPAMP GP 1 CIRCUIT 8SOIC
- Series：-
- Mfr：Intersil
- Package：Tube
- Amplifier Type：General Purpose
- Number of Circuits：1
- Output Type：-
- Slew Rate：9V/µs
- Gain Bandwidth Product：4.5 MHz
- Current - Input Bias：10 pA
- Voltage - Input Offset：2 mV
- Current - Supply：4mA
- Current - Output / Channel：40 mA
- Voltage - Supply Span (Min)：4 V
- Voltage - Supply Span (Max)：36 V
- Operating Temperature：-55°C ~ 125°C
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package：8-SOIC
- -3db Bandwidth：-
Download product information
Overview
The CA3140AM is a single-channel BiMOS operational amplifier featuring MOSFET input and bipolar output stages. It offers a gain-bandwidth product of 4.5 MHz and a slew rate of 9 V/µs. The device operates on supply voltages ranging from 4 V to 36 V (single) or ±2 V to ±18 V (dual). Key electrical parameters include an input bias current of 50 pA, input offset voltage of 15 mV, and output short-circuit protection. It is housed in an 8-pin DIP package.
Feature Summary
- Combines high-voltage PMOS transistors with bipolar transistors for high input impedance and fast performance
- Includes internal frequency compensation for stability without external components
- Features output short-circuit protection for enhanced reliability
- Provides offset null capability via dedicated pins
Applications
- Sample-and-hold amplifiers
- Integrators and differentiators
- Photodiode preamplifiers
- Active filters
Procurement Notes
Verify the manufacturer marking and date code against Intersil or Renesas specifications. Confirm the suffix 'AM' corresponds to the military-grade temperature range (-55°C to 125°C) and plastic DIP-8 package. Request the official datasheet to validate pinout and electrical limits before integration.
Selection Notes
Select this component when high input impedance and low bias current are required alongside moderate bandwidth. It serves as a direct replacement for standard JFET-input op-amps where higher slew rates are needed. Ensure the application supports the specified common-mode input voltage range relative to the supply rails.
Part Context
The CA3140 series represents a classic BiMOS technology integrating PMOS inputs with bipolar outputs. Originally developed by RCA and later produced by Harris and Intersil, it remains a standard for general-purpose high-speed applications requiring high input impedance.
Replacement Considerations
Publicly confirmed substitutes include the CA3140AE and CA3140AT. Verify package compatibility and temperature range specifications when cross-referencing with other manufacturers' equivalents.
