CBD02.07.0100C

Antennas RF Overview

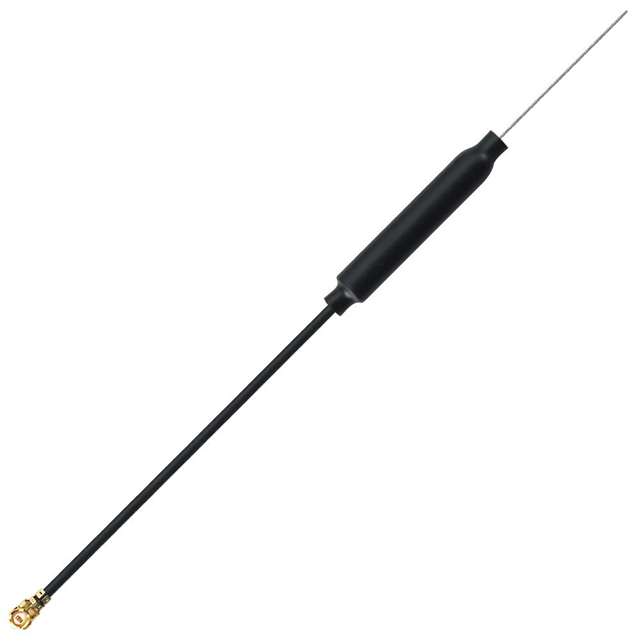

The CBD02.07.0100C is a coax cable dipole antenna designed for Wi-Fi applications within the 5.15GHz to 5.85GHz frequency range. It features an omnidirectional radiation pattern and maintains high efficiency exceeding 70% across the specified band from 5150 to 5850 MHz. The unit utilizes a straight U.FL (UMCC) connector interface, facilitating flexible integration into compact electronic devices. This component serves as a dedicated RF solution for wireless communication systems requiring reliable signal transmission in the 5 GHz spectrum.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• High radiation efficiency exceeding 70% in the operational band
• Flexible design enabling easy integration into device enclosures

Antennas RF Applications

• Wi-Fi devices operating in the 5.15GHz to 5.85GHz range
• Wireless LAN equipment requiring compact antenna solutions
• IoT modules utilizing 5 GHz connectivity

Antennas RF Procurement Notes

Verify that the specific part number CBD02.07.0100C matches the required 5.8GHz specification and U.FL connector type. Confirm RoHS compliance status through official Taoglas documentation prior to ordering. Ensure the receiving engineering team validates the connector orientation and cable length against the system design requirements to prevent integration issues during assembly.

Antennas RF Selection Notes

Select this model when a low-profile, flexible whip antenna is required for 5 GHz Wi-Fi bands. The U.FL connector suits space-constrained PCB layouts. Consider the omnidirectional pattern suitability for the intended deployment environment. Evaluate the mechanical flexibility against potential bending stress limits in the final product assembly to ensure long-term reliability of the feed line.

Antennas RF Part Context

This component belongs to the Taoglas CBD series of cable dipole antennas. It is engineered specifically for wireless local area network applications. The design prioritizes ease of integration and consistent performance in the 5.8 GHz spectrum. It complements other RF solutions by providing a dedicated, high-efficiency radiating element for modern wireless communication hardware.

Antennas RF Replacement Considerations

Consult official Taoglas substitution guides for compatible alternatives. Verify that any substitute maintains the same U.FL interface and 5.15-5.85 GHz frequency coverage. Ensure mechanical dimensions and radiation characteristics align with the original design constraints before implementing a cross-reference part.
