CCADR36S2

Overview

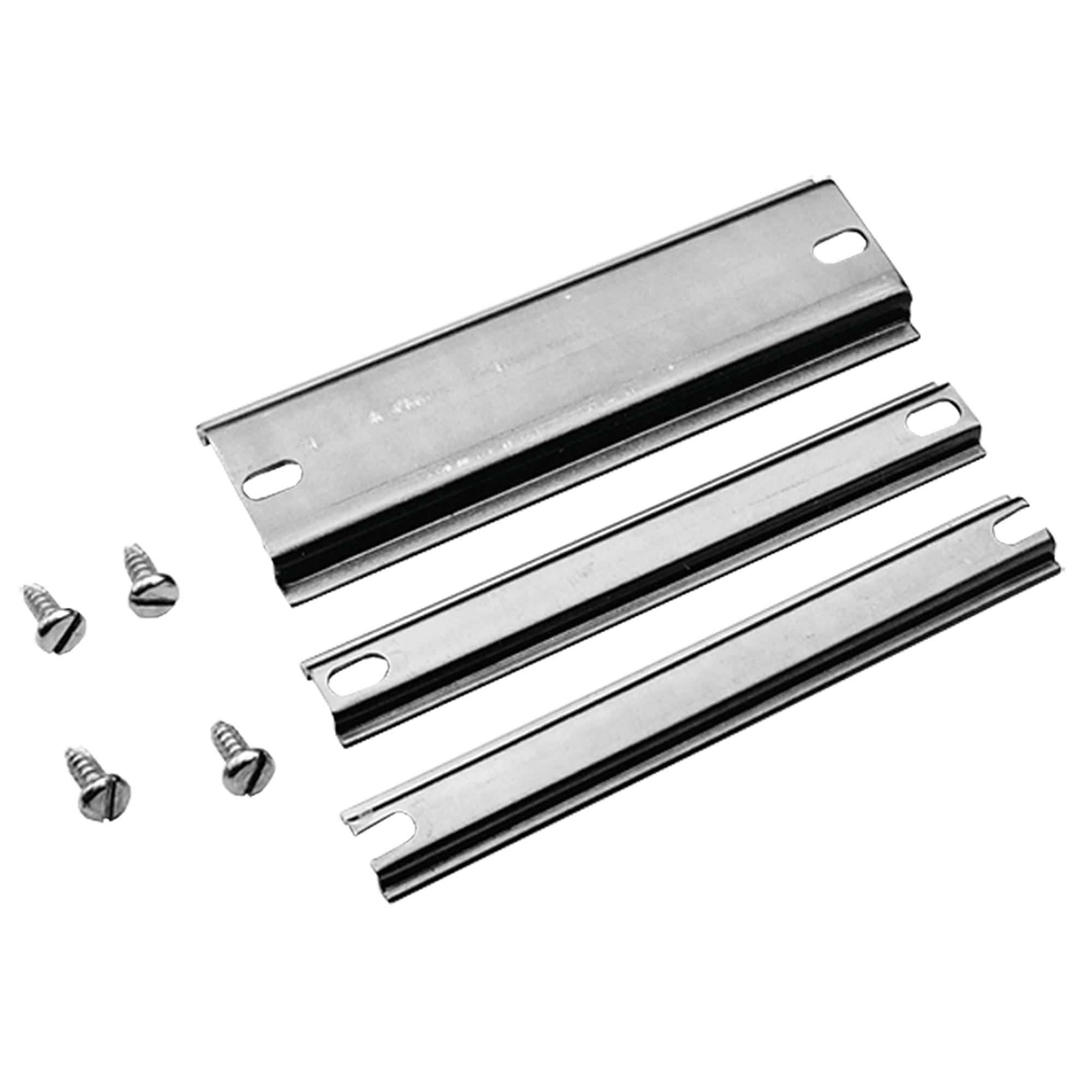

The CCADR36S2 is a compact DIN type rail manufactured by Hoffman Enclosures, Inc. Constructed from steel, this component has a length of 360 mm. It is designed to fit within specific enclosure sizes and accepts various electrical components including terminal blocks, relays, switches, filters, and timers.

Feature Summary

• Snap-on mounting mechanism for quick and efficient installation into enclosures
• Steel construction material
• Compatible with terminal blocks, relays, switches, filters, and timers

Applications

• Mounting terminal blocks within enclosures
• Installing relays in control panels
• Supporting switches and filters
• Holding timers in industrial setups

Procurement Notes

Verify the part number CCADR36S2 against official manufacturer documentation to confirm it is a steel DIN rail with a 360 mm length. Ensure compatibility with the intended enclosure model, as these rails are designed to fit specific compact aluminum enclosure sizes. Confirm the snap-on mounting requirement matches the installation method available in the target housing.

Selection Notes

Select this rail when a 360 mm length is required for compact aluminum enclosures. The steel construction provides durability for holding terminal blocks, relays, and other standard DIN-mounted devices. Verify that the enclosure supports the snap-on installation method described in the product specifications before finalizing the selection.

Part Context

This component belongs to the nVent HOFFMAN Compact Din Type Rails series. It serves as an internal mounting solution for organizing electrical components within Hoffman enclosures. The product line offers various lengths to match different enclosure dimensions, ensuring secure placement of critical control elements.

FAQ

What is the mounting method for the CCADR36S2?

The rail uses a snap-on fixing mechanism for quick and efficient installation into compatible enclosures.

Which components can be mounted on this rail?

It accepts terminal blocks, relays, switches, filters, timers, and various other electrical components.
