CFD69383P1-B30NF

Antennas RF Overview

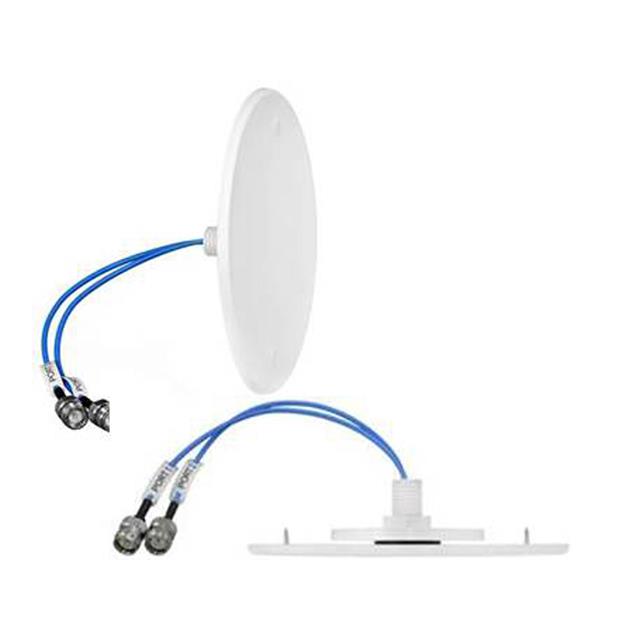

The TE Connectivity CFD69383P1-B30NF is a multi-protocol MIMO indoor antenna designed for ceiling mounting. It operates across three frequency bands: 698–960 MHz, 1690–3800 MHz, and 4700–5850 MHz. The unit features a 30 cm cable with a Type N female connector. Electrical specifications include a 50 Ohm impedance, 50 W power rating, and gains ranging from 3.8 to 5.7 dBi depending on the band. It supports LTE, WiMAX, AWS-3, CBRS, and WCS applications.

Antennas RF Feature Summary

• Supports multiple wireless protocols including LTE and WiMAX through dedicated frequency bands
• Ultra-low-profile flat panel design suitable for hard ceiling installation
• Integrated 30 cm cable termination with standard Type N female connector

Antennas RF Applications

• LTE network infrastructure
• WiMAX broadband access systems
• CBRS and WCS deployments

Antennas RF Procurement Notes

Verify the specific suffix against the official datasheet to confirm connector type and cable length. Ensure the ordering part number matches the required frequency bands and gain characteristics. Confirm RoHS compliance status if environmental regulations apply to the project requirements.

Antennas RF Selection Notes

Select this model for indoor environments requiring low-profile multi-band coverage. It is optimized for ceiling mounting in commercial or industrial settings. Consider the 50 W power handling and 50 Ohm system impedance when integrating with existing RF infrastructure components.

Antennas RF Part Context

This component belongs to the TE Connectivity CFD series of ultra-low-profile antennas. The series focuses on multiprotocol solutions for indoor wireless coverage. The CFD69383P1 variant specifically addresses multi-band requirements with integrated cabling for simplified installation.

Antennas RF Replacement Considerations

Consult the official CFD series documentation for direct substitutes. Verify that alternative models maintain compatible connector types and frequency ranges.
