CFD69716P1-30D43F

$85.46

Description：5G OMNI ANTENNA
Series：CFD 5G
Mfr：TE Connectivity
Package：Bulk

SKU:2a9ecf91d3d1 Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFD69716P1-30D43F is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is 5G OMNI ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CFD69716P1-30D43F

Description：5G OMNI ANTENNA
Series：CFD 5G
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：761MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.5GHz, 3.55GHz, 4GHz, 5.5375GHz, 6.525GHz
Frequency Range：698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Flat Panel
Number of Bands：12
VSWR：1.7, 2.3
Return Loss：-
Gain：3.3dBi, 2.8dBi, 2.7dBi, 4.3dBi, 3.4dBi, 3.8dBi, 5.7dBi, 5.4dBi, 5.5dBi, 5.3dBi, 5.6dBi, 5.4dBi
Features：Cable - 300mm
Termination：4.3/10 - Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.299" (7.60mm)
Applications：LTE
Power - Max：50 W

Antennas RF datasheet and documents for CFD69716P1-30D43F

CFD69716P1-30D43F

Antennas RF Overview

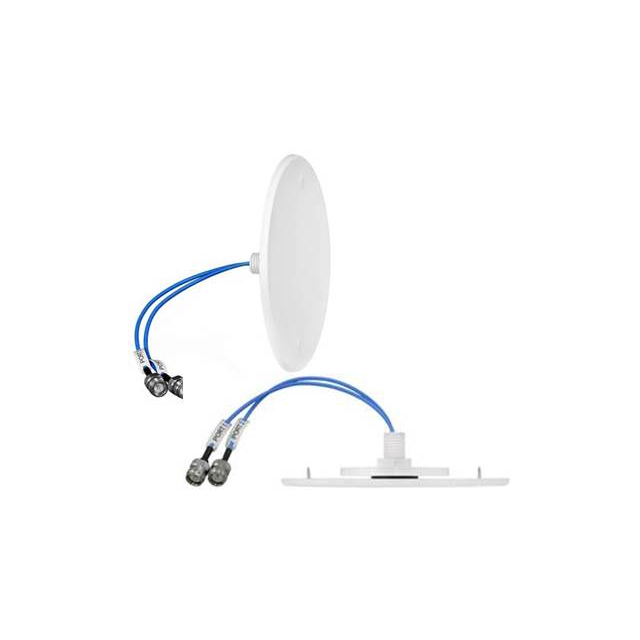

The TE Connectivity CFD69716P1-30D43F is an internal multi-band plate antenna designed for 5G applications. It operates within a frequency range of 698 MHz to 7125 MHz, providing a gain of 5.7 dBi. The unit features a ceiling mount installation style and includes a 30 cm cable terminated with a D43F connector.

Antennas RF Feature Summary

Supports 5G RF protocols
Internal plate physical form factor

Antennas RF Applications

5G indoor coverage systems

Antennas RF Procurement Notes

Verify the specific datasheet version for the CFD69716P1-30D43F model to confirm detailed electrical parameters such as VSWR and impedance. Ensure the D43F connector interface matches the host equipment requirements before procurement.

Antennas RF Selection Notes

Select this component for projects requiring compact internal antennas supporting wideband 5G frequencies. The low-profile plate design suits ceiling installations where space constraints exist.

Antennas RF Part Context

This part belongs to the CFD series of ultra-low-profile MIMO ceiling mount antennas from TE Connectivity. These antennas are engineered for distributed antenna systems in commercial and industrial environments.
