CFS-0400TB

Dip Switches Overview

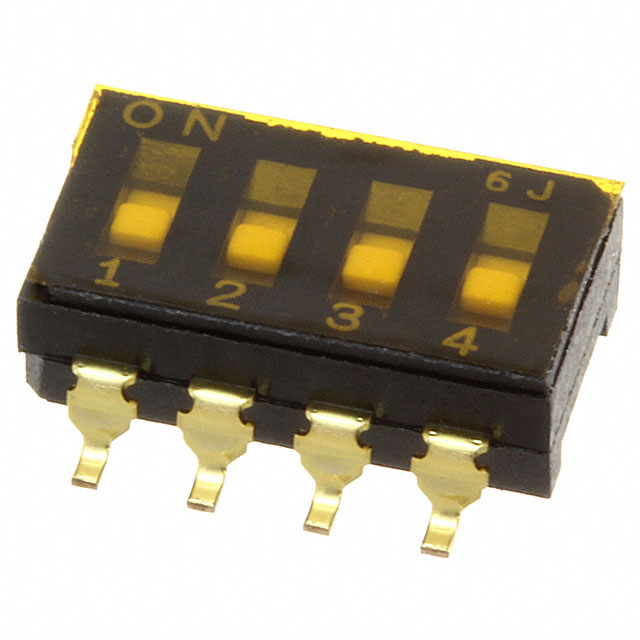

The CFS-0400TB is a surface-mount DIP slide switch manufactured by Nidec Components. It features four positions with SPST circuit configuration, rated for 100mA at 6VDC. The component utilizes gull-wing SMD terminals and a standard slide actuator with flush or recessed levels. Constructed with PPS base material and gold-plated copper alloy contacts, it supports washable assembly processes. The switch offers an electrical life of 1000 cycles and operates within a temperature range of -40°C to 85°C.

Dip Switches Feature Summary

• Surface-mount design with gull-wing terminals for automated PCB assembly
• Four-position SPST sliding actuator with flush or recessed profile
• Gold-plated copper alloy contacts ensure reliable signal switching
• Compatible with aqueous washing processes during manufacturing

Dip Switches Applications

• Configuration settings in consumer electronics
• Address selection in industrial control modules
• Function selection in embedded system interfaces
• Parameter setup in diagnostic equipment

Dip Switches Procurement Notes

Verify the specific tape and reel packaging requirements against your pick-and-place machine specifications. Confirm that the MSL Level 1 rating aligns with your facility's floor life management protocols. Ensure the gull-wing terminal style matches your PCB footprint design to prevent soldering defects during reflow processes.

Dip Switches Selection Notes

Select this model when a low-profile surface-mount DIP switch is required for space-constrained designs. The four-position count suits applications needing binary configuration options. Consider the 100mA current rating for low-power signal switching rather than high-current power loads. Verify compatibility with washable fluxes if post-assembly cleaning is part of the production workflow.

Dip Switches Part Context

This component belongs to the CFS series of slide switches from Nidec Components. The series includes various position counts and package styles, such as through-hole and different surface-mount configurations. The CFS-0400TB specifically addresses the need for compact, automated assembly compatible switches in modern electronics manufacturing.

Dip Switches Replacement Considerations

The CFS-0200MB is a documented substitute option within the same manufacturer lineup, offering similar technical characteristics but with two positions instead of four.
