CFSA69383P1-30D43F

Antennas RF Overview

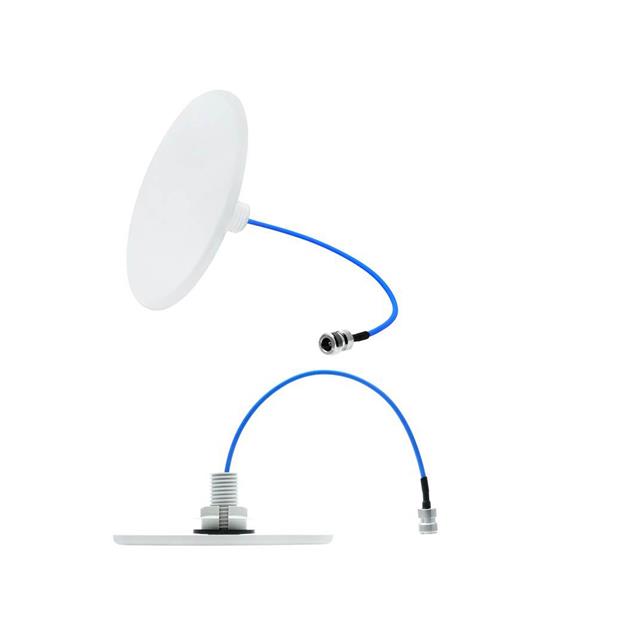

The TE Connectivity CFSA69383P1-30D43F is a passive indoor MIMO flat panel RF antenna designed for cellular voice and data coverage. It operates within a frequency range of 698 MHz to 4 GHz, supporting AWS, GSM, DCS, LTE, UMTS, and WiMax applications. The unit features a 4.3/10 female connector, panel mounting type, and a maximum height of 7.62 mm.

Antennas RF Feature Summary

• Supports multiple cellular protocols including LTE, UMTS, and WiMax
• Ultra-low-profile flat panel design for aesthetic integration
• Compatible with AWS, GSM, and DCS frequency bands

Antennas RF Applications

• Indoor cellular voice and data coverage systems
• Distributed Antenna Systems (DAS)
• CBRS network deployments

Antennas RF Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm connector type and cable length specifications. Ensure compatibility with existing system interfaces before procurement. Cross-reference part numbers carefully as minor variations exist within the CFD series.

Antennas RF Selection Notes

Select this model for environments requiring wideband coverage across multiple cellular standards. The low-profile form factor suits installations where visual impact must be minimized. Confirm that the 4.3/10 interface matches the connected transmission line hardware requirements.

Antennas RF Part Context

This component belongs to the CFD series of ultra-low-profile MIMO ceiling mount antennas by TE Connectivity. The series provides solutions for both low PIM and non-PIM requirements in modern wireless infrastructure deployments.

Antennas RF Replacement Considerations

CFD69383P1-30D43F serves as a functional substitute within the same product family. Verify mechanical dimensions and connector polarity when replacing similar models.
