CGGBP.35.6.A.02

$7.74

Description：RF ANT 1.56/1.575GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray

SKU:64feacac0b0e Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CGGBP.35.6.A.02 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.56/1.575GHZ CER PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CGGBP.35.6.A.02

Description：RF ANT 1.56/1.575GHZ CER PATCH
Series：-
Mfr：Taoglas Limited
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.56GHz, 1.575GHz, 1.602GHz
Frequency Range：1.533GHz ~ 1.589GHz, 1.547GHz ~ 1.603GHz, 1.574GHz ~ 1.63GHz
Antenna Type：Ceramic Patch
Number of Bands：3
VSWR：2.5
Return Loss：-10dB
Gain：4.5dBi, 3dBi, 4.5dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.256" (6.50mm)
Applications：Beidou, Galileo, GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for CGGBP.35.6.A.02

CGGBP.35.6.A.02

Antennas RF Overview

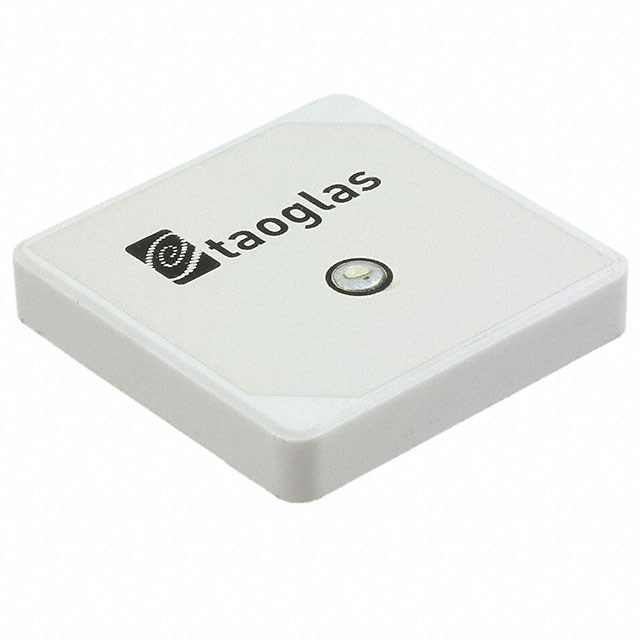

The CGGBP.35.6.A.02 is a circularly polarized embedded GNSS ceramic patch antenna manufactured by Taoglas Limited. It operates across the full single-band GNSS spectrum, supporting frequencies of 1.56GHz, 1.575GHz, and 1.602GHz. The component features a compact square footprint measuring 35mm x 35mm with a height of 6.5mm. Designed for high-precision applications, it supports GPS, GLONASS, Galileo, and BeiDou navigation systems. The antenna utilizes a pin connector interface and adhesive mounting method.

Antennas RF Feature Summary

Supports full single-band GNSS spectrum including GPS, GLONASS, Galileo, and BeiDou
Compact 35mm square ceramic patch design suitable for embedded integration
Circular polarization for enhanced signal reception in navigation applications

Antennas RF Applications

GPS navigation systems
GLONASS positioning devices
Galileo satellite navigation receivers
BeiDou tracking equipment

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and mechanical dimensions for your design. Confirm the pin connector type and adhesive mounting requirements align with your PCB layout and assembly process. Ensure compliance with RoHS and REACH standards as specified in the official documentation before finalizing procurement.

Antennas RF Selection Notes

Select this model when a low-profile, multi-constellation GNSS solution is required. The 35mm form factor offers a balance between performance and space constraints compared to larger external antennas. Consider the adhesive mounting option if through-hole or surface-mount soldering is not preferred for the application environment.

Antennas RF Part Context

This component belongs to the Taoglas CGGBP series of embedded GNSS patch antennas. It is designed for integration into portable and fixed navigation hardware where space is limited. The series provides reliable performance across multiple global navigation satellite systems using a standardized ceramic patch technology.
