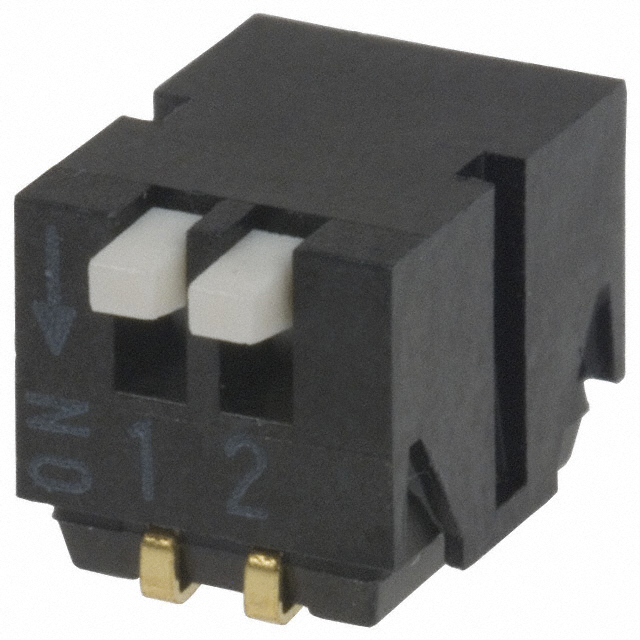

Dip Switches CHP-020A product image

CHP-020A

$1.72

Description：SWITCH PIANO DIP SPST 0.1A 6V
Series：CHP
Mfr：Nidec Components Corporation
Package：Bulk

SKU:f66106437fb1 Category: DIP Switches Brand: Nidec Components Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CHP-020A is listed in the Dip Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH PIANO DIP SPST 0.1A 6V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for CHP-020A

Description：SWITCH PIANO DIP SPST 0.1A 6V
Series：CHP
Mfr：Nidec Components Corporation
Package：Bulk
Circuit：SPST
Number of Positions：2
Current Rating (Amps)：100mA
Voltage Rating：6VDC
Actuator Type：Piano
Actuator Level：Raised
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.181" (4.60mm)
Mounting Type：Surface Mount, Right Angle
Termination Style：J Lead
Pitch：0.050" (1.27mm), Half
Washable：No
Features：-
Operating Temperature：-40°C ~ 85°C

Dip Switches datasheet and documents for CHP-020A

CHP-020A
