CLS69273P-30D43F

Description：RF ANT 700MHZ/850MHZ MODULE CAB
Series：-
Mfr：TE Connectivity
Package：Bulk

SKU:1bae11ac79f6 Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CLS69273P-30D43F is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 700MHZ/850MHZ MODULE CAB. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CLS69273P-30D43F

Description：RF ANT 700MHZ/850MHZ MODULE CAB
Series：-
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range：698MHz ~ 960MHz, 1.695GHz ~ 2.7GHz
Antenna Type：Module
Number of Bands：8
VSWR：1.8, 1.6, 1.7, 1.9, 1.9, 1.9, 1.7, 1.5, 1.3
Return Loss：-
Gain：3dBi, 3dBi, 4.1dBi, 5.6dBi, 7dBi, 7dBi, 6.7dBi, 7.3dBi
Features：Cable - 305mm
Termination：N Type Female
Ingress Protection：-
Mounting Type：Panel Mount
Height (Max)：1.870" (47.50mm)
Applications：DCS, GSM, LTE, UMTS, WiMax™
Power - Max：50 W

Antennas RF datasheet and documents for CLS69273P-30D43F

CLS69273P-30D43F

Antennas RF Overview

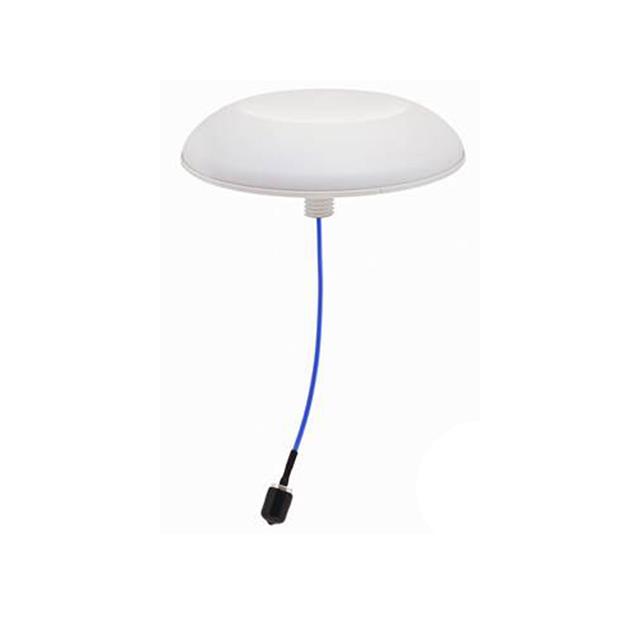

The TE Connectivity CLS69273P-30D43F is a low-profile ceiling mount RF antenna designed for broadband wireless applications. It supports dual-band operation across 698MHz to 960MHz and 1.695GHz to 2.7GHz, covering LTE, UMTS, GSM, DCS, and WiMax standards. The unit features an N-type female connector with a 305mm cable, panel/ceiling mounting, and a maximum height of 47.50mm. Gain ranges from 3dBi to 7.3dBi depending on the frequency band, with a maximum power handling of 50W.

Antennas RF Feature Summary

Low-profile design optimized for ceiling installation
Dual-band coverage supporting multiple cellular and WiMax protocols
Integrated 305mm cable with N-type female termination

Antennas RF Applications

LTE network infrastructure
UMTS deployment
GSM system integration
WiMax transmission

Antennas RF Procurement Notes

Verify part status as this model may be discontinued or subject to end-of-life notices. Confirm current availability through authorized distributors. Check for updated datasheets regarding component changes. Ensure compatibility with existing mounting hardware. Validate regulatory compliance requirements for the target region before procurement.

Antennas RF Selection Notes

Select this antenna for environments requiring discreet ceiling-mounted solutions. Consider the specific gain requirements per frequency band when designing the link budget. Verify that the N-type connector matches the connected radio equipment. Assess physical clearance constraints due to the 47.50mm height profile.

Antennas RF Part Context

This component belongs to the CLS69273 series of ultra-low-profile MIMO antennas by TE Connectivity. These units are engineered for indoor distribution systems and small cell deployments where aesthetic integration and space efficiency are critical. The series typically supports multi-standard wireless technologies.
