CMD69423P-B30NF

Antennas RF Overview

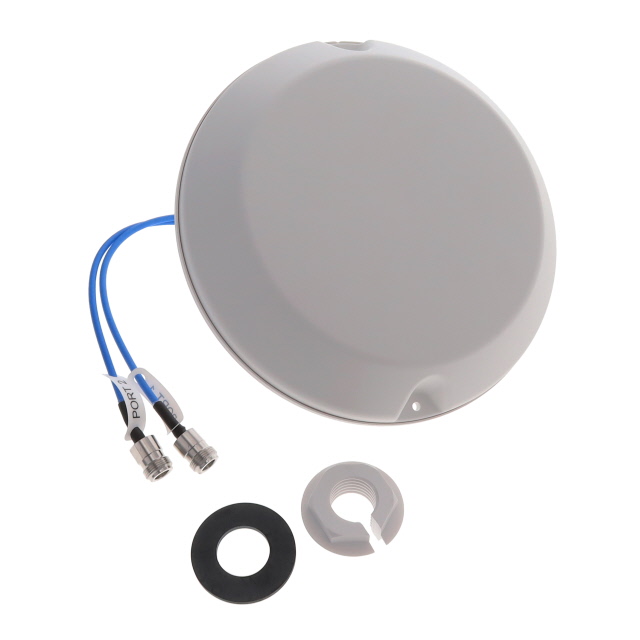

The CMD69423P-B30NF is a flat panel RF antenna manufactured by TE Connectivity, designed for 5G and GPRS applications. It features an omnidirectional radiation pattern with a gain of 6.7 dBi and operates within the 698 to 806 MHz frequency range. The unit has a maximum power handling capacity of 50 W and a characteristic impedance of 50 Ohms. It utilizes a Type N female connector and includes a 300 mm cable. The antenna is intended for ceiling or wall mounting, with a maximum height of 43.50 mm.

Antennas RF Feature Summary

• Supports 5G and GPRS network standards
• Omnidirectional radiation pattern for broad coverage
• Low-profile flat panel design suitable for discreet installation

Antennas RF Applications

• 5G cellular infrastructure deployment
• GPRS network expansion
• Indoor or outdoor wireless communication systems

Antennas RF Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to ensure correct connector type and cable length specifications. Confirm that the required frequency band aligns with the 698-806 MHz operational range before procurement. Check current manufacturing lead times as availability may vary based on production schedules.

Antennas RF Selection Notes

Select this model when a low-profile omnidirectional solution is required for 5G and GPRS bands. Ensure the installation environment supports ceiling or wall mounting given the physical dimensions. Verify that the 50 W power rating meets the system requirements and that the Type N female interface matches existing cabling infrastructure.

Antennas RF Part Context

This component belongs to the CMD series of antennas from TE Connectivity, which are engineered for robust wireless connectivity. The series typically includes variants optimized for different frequency ranges and mounting configurations, providing scalable solutions for modern telecommunications networks requiring reliable signal transmission.

Antennas RF Replacement Considerations

Consult official TE Connectivity substitution guides for compatible alternatives. Direct replacements must match the 50 Ohm impedance, Type N female connector, and 698-806 MHz frequency range to maintain system integrity.
