CMTA-910001

Antennas RF Overview

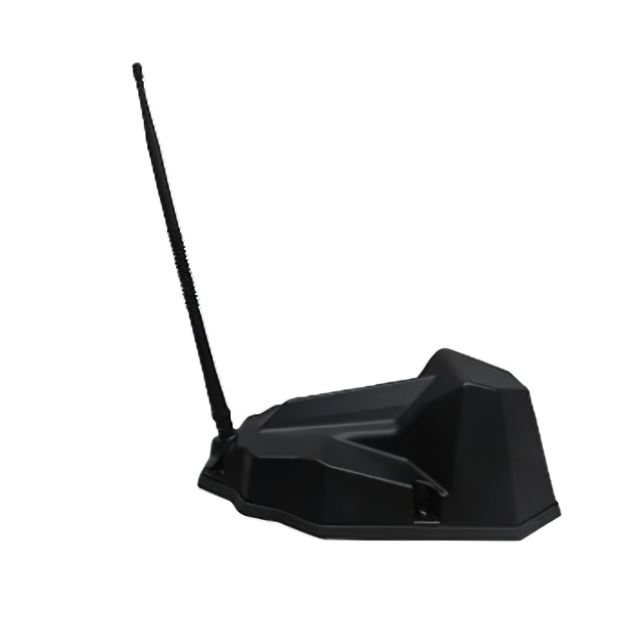

The CMTA-910001 is a configurable multiband through-hole mounted antenna platform by Amphenol PCTEL. It supports up to 10x1 antenna functions and incorporates four 5G FR1 elements compatible with multi-carrier cellular routers. The unit features a 10-port SMA-plug configuration designed for complex communication systems. It operates within a frequency range of 600 MHz to 6 GHz, supporting GNSS, Cellular, and Wi-Fi protocols. This high-performance, multi-spectrum antenna is engineered for reliable wireless connectivity in demanding environments.

Antennas RF Feature Summary

• Configurable multiband platform supporting up to 10x1 antenna functions
• Incorporates four 5G FR1 elements for multi-carrier router compatibility
• 10-port SMA-plug interface for complex system integration
• Through-hole mounting design for secure installation

Antennas RF Applications

• Multi-carrier cellular router deployments
• Complex communication systems requiring multi-spectrum support
• GNSS and Cellular connectivity infrastructure
• Wi-Fi and Bluetooth low energy connection environments

Antennas RF Procurement Notes

Verify the specific ordering suffix and configuration options directly with Amphenol PCTEL or authorized distributors before purchase. Confirm that the 10-port SMA-plug interface matches your system requirements. Ensure the through-hole mounting style is suitable for your enclosure design. Check current availability as lead times may vary. Validate frequency coverage aligns with your operational band needs.

Antennas RF Selection Notes

Select this model when a configurable multiband solution is required for high-speed data transmission. It is suitable for applications needing simultaneous support for 5G FR1, GNSS, and Wi-Fi. Consider the 10-port capacity for future expansion or diverse protocol integration. The through-hole design offers robust mechanical stability compared to surface-mount alternatives.

Antennas RF Part Context

The CMTA-910001 belongs to the CMTA configurable multiband platform series from Amphenol PCTEL. This platform is designed to meet the high-speed requirements of modern wireless networks. It serves as a versatile component for integrating multiple radio frequency bands into a single compact unit, facilitating efficient space utilization in critical communication hardware.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for the CMTA-910001. Due to its specific 10-port configuration and integrated 5G FR1 elements, direct replacements may not exist. Evaluate other models within the CMTA platform family for similar functionality if this specific variant is unavailable.
