CPH6102-TL-E

Single Bipolar Transistors Overview

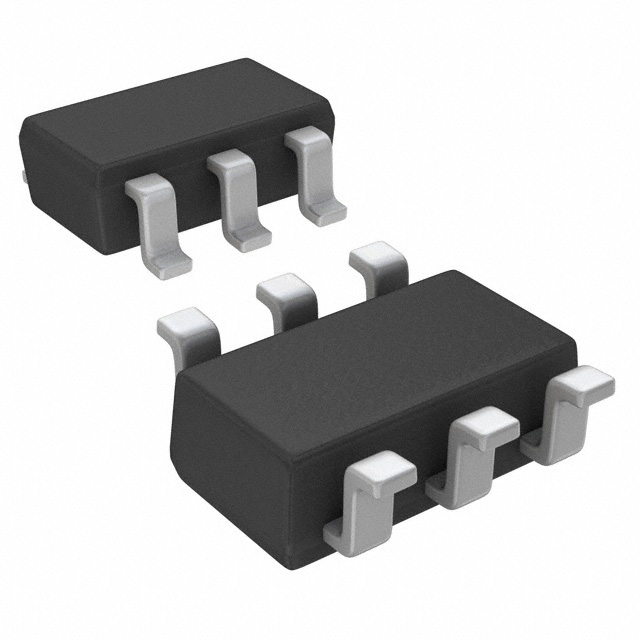

The CPH6102-TL-E is a PNP bipolar junction transistor manufactured by onsemi, designed for high-current switching applications. It features a single configuration within a surface-mount CPH package measuring 2.9 x 1.6 x 0.9 mm. The device supports a maximum DC collector current of 1.5 A and a collector-emitter voltage of 30 V. Key electrical parameters include a collector-base voltage of 30 V, an emitter-base voltage of 5 V, and a saturation voltage of 250 mV. It offers a gain-bandwidth product of 450 MHz and handles up to 1 W of power dissipation, operating at temperatures up to +150 °C.

Single Bipolar Transistors Feature Summary

• Utilizes FBET and MBIT processes for high-speed switching performance
• Features low collector-to-emitter saturation voltage for efficient operation
• Incorporates ultrasmall packaging to support compact and slim device designs

Single Bipolar Transistors Applications

• DC-DC converters
• Relay drivers
• Motor drivers

Single Bipolar Transistors Procurement Notes

Verify the current lifecycle status before procurement, as this component may be subject to discontinuation or obsolescence notices from the manufacturer. Confirm that the specific tape-and-reel quantity requirements align with production needs. Ensure compatibility with existing lead frame materials if recent process changes have been announced. Validate that the CPH package dimensions fit the target PCB footprint without modification.

Single Bipolar Transistors Selection Notes

Select this component when designing circuits requiring a PNP transistor with high current handling capabilities in a minimal footprint. The 450 MHz transition frequency makes it suitable for medium-speed switching tasks. Consider the 1 W power dissipation limit for thermal management strategies. The low saturation voltage is advantageous for minimizing power loss in load-switching scenarios compared to standard general-purpose transistors.

Single Bipolar Transistors Part Context

This part belongs to the CPH series of surface-mount transistors from onsemi, which emphasizes miniaturization and high performance. The CPH package allows for high allowable power dissipation relative to its small physical size. This specific model represents a PNP variant optimized for driving loads in portable electronics and industrial control systems where space constraints are critical.

Single Bipolar Transistors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
