Product Detailed Parameters

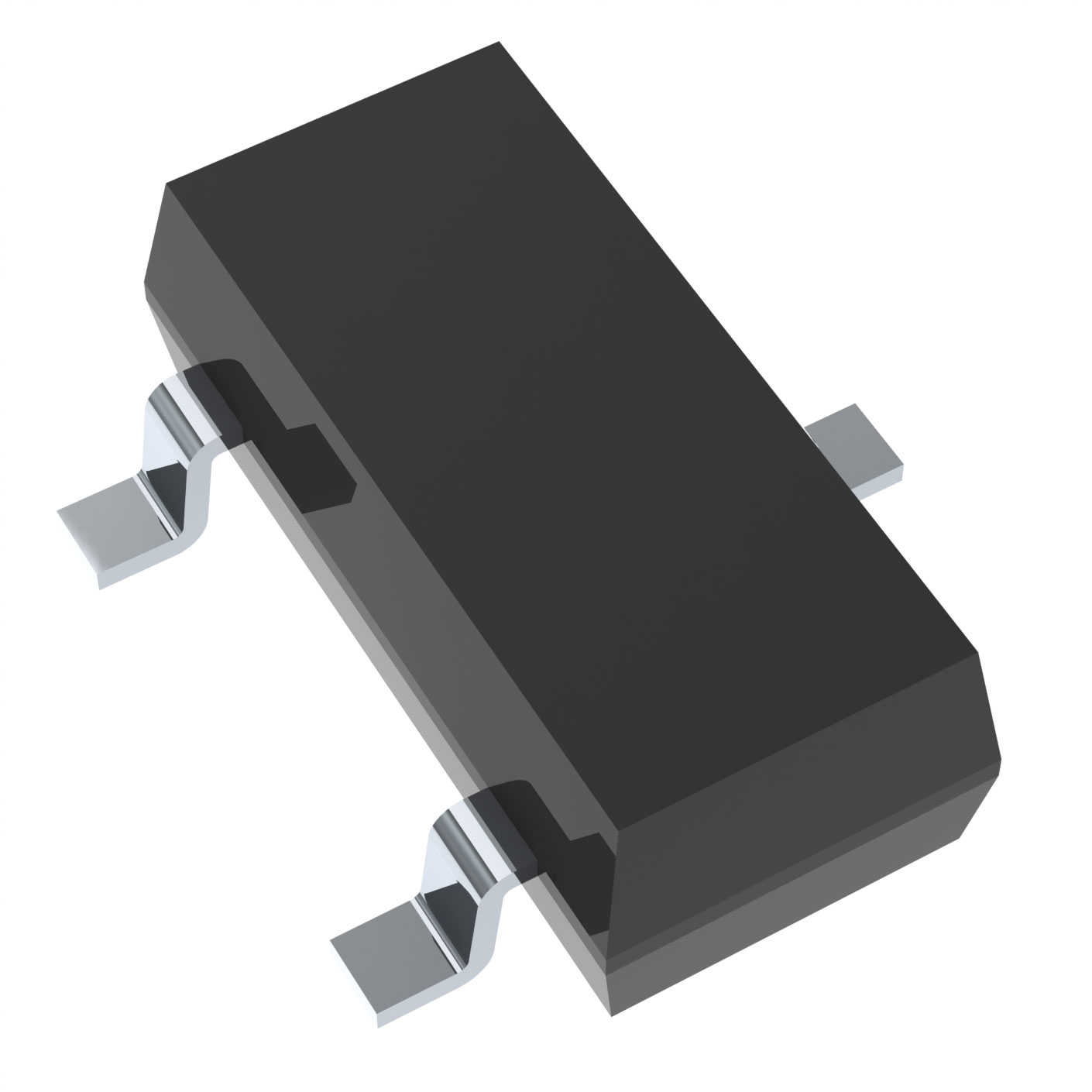

- Description：SCR 400V 150MA 3MPAK
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR)
- Voltage - Off State：400 V
- Voltage - Gate Trigger (Vgt) (Max)：800 mV
- Current - Gate Trigger (Igt) (Max)：100 µA
- Current - Hold (Ih) (Max)：3 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm)：10A @ 60Hz
- SCR Type：Sensitive Gate
- Operating Temperature：-40°C ~ 125°C
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：TO-236-3, SC-59, SOT-23-3
- Supplier Device Package：3-MPAK
- Voltage - On State (Vtm) (Max)：1.9 V
- Current - On State (It (AV)) (Max)：100 mA
- Current - On State (It (RMS)) (Max)：150 mA
- Current - Off State (Max)：100 µA
Download product information
Overview
The CR05BS-8-T13#F10 is a silicon controlled rectifier (SCR) manufactured by Renesas Electronics Corporation. It features a sensitive gate structure designed for surface mount applications in the 3-MPAK package. The device supports a repetitive peak off-state voltage of 400V and an RMS on-state current of 150mA. It operates within a standard temperature range suitable for industrial equipment and embedded electronics.
Feature Summary
- Sensitive gate architecture for reliable triggering
- Surface mount construction in 3-MPAK package
- Standard recovery characteristics
Applications
- Embedded electronics control circuits
- Industrial equipment power management
- AC switching applications
Procurement Notes
Verify component authenticity through authorized Renesas distributors. Confirm RoHS compliance status as indicated in official documentation. Check for specific ordering suffixes that may affect packaging or testing requirements. Ensure storage conditions meet moisture sensitivity level specifications to prevent damage prior to assembly.
Selection Notes
Select this SCR for applications requiring compact surface mount solutions with moderate current handling capabilities. The 400V rating suits low-voltage AC systems. Consider thermal dissipation requirements associated with the 3-MPAK package when designing heat sinks. Evaluate gate trigger sensitivity against control circuit drive capabilities.
Part Context
This component belongs to Renesas' discrete semiconductor portfolio, specifically within the silicon controlled rectifier category. It complements other SCRs like the CR02AM series, offering surface mount alternatives to traditional through-hole packages. The product line targets modern manufacturing needs for smaller form factor designs.
Replacement Considerations
Direct substitutes include the CR05BS-8-ET13#F10 variant. Verify pin compatibility and electrical ratings before substitution. Cross-reference datasheets for thermal resistance differences between package variants.
