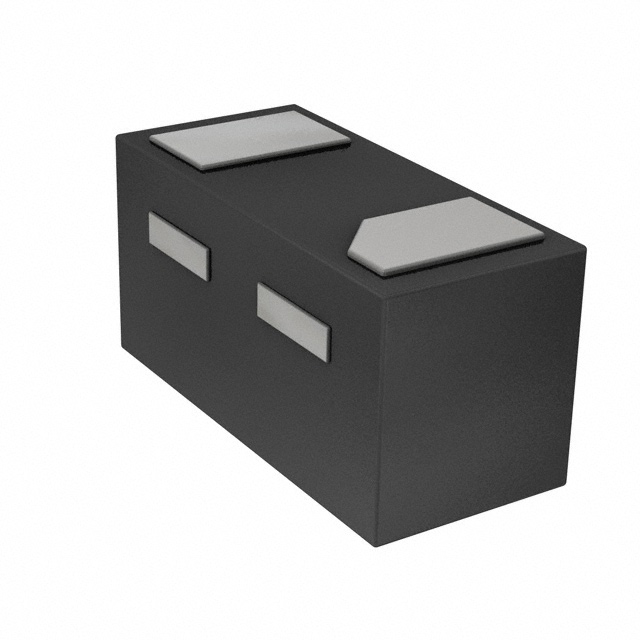

CTLSH01-30L TR PBFREE

$0.20

Description：DIODE SCHOTTK 30V 100MA TLM2D3D6
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f833c48ee512 Category: Single Diodes Brand: Central Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTLSH01-30L TR PBFREE is listed in the Single Diodes range at ChipApex. The manufacturer field lists Central Semiconductor Corp. Its product description is DIODE SCHOTTK 30V 100MA TLM2D3D6. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for CTLSH01-30L TR PBFREE

Description：DIODE SCHOTTK 30V 100MA TLM2D3D6
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：100mA
Voltage - Forward (Vf) (Max) @ If：370 mV @ 10 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：7 µA @ 10 V
Capacitance @ Vr, F：7pF @ 0V, 1MHz
Mounting Type：Surface Mount
Package / Case：0201 (0603 Metric)
Supplier Device Package：TLM2D3D6
Operating Temperature - Junction：-65°C ~ 125°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for CTLSH01-30L TR PBFREE

CTLSH01-30L TR PBFREE

Single Diodes Overview

The CTLSH01-30L is a surface mount silicon Schottky diode designed for size-constrained applications. It features an ultra-small, low-profile TLM2D3D6 package measuring 0.3mm x 0.6mm x 0.3mm. Key electrical parameters include a peak repetitive reverse voltage of 30V and an average forward current of 100mA. The device exhibits a typical forward voltage drop of 300mV at 10mA and a typical reverse current of 1.3μA at 10V. Power dissipation is rated at 100mW with a thermal resistance of 1000°C/W.

Single Diodes Feature Summary

Ultra-small leadless surface mount package with a low profile height of 0.3mm
Low forward voltage drop characteristics suitable for demanding efficiency requirements
Low reverse leakage current to minimize power loss in standby modes

Single Diodes Applications

DC-DC converters
Voltage clamping circuits
Protection circuits
Battery powered devices such as cell phones and digital cameras

Single Diodes Procurement Notes

Verify the specific ordering suffix when purchasing. Add PBFREE for lead-free plating or TIN/LEAD for tin/lead plating options. Confirm RoHS compliance status and environmental regulations prior to integration. Ensure the requested quantity matches the manufacturer's standard packaging requirements for efficient procurement processing.

Single Diodes Selection Notes

Select this component when physical space is limited due to its compact TLM2D3D6 footprint. Choose this diode for low-voltage rectification where minimizing forward voltage drop is critical for system efficiency. Consider the 30V rating for appropriate reverse voltage protection in low-voltage battery-powered systems.

Single Diodes Part Context

This component belongs to Central Semiconductor’s line of surface mount Schottky diodes. It utilizes the TLM2D3D6 case outline, which provides a leadless surface mount configuration. The marking code for identification is D. The datasheet revision R3 was dated January 5, 2015.
