CY9AF004BGL-G107MJK7ERE1

Microcontrollers Overview

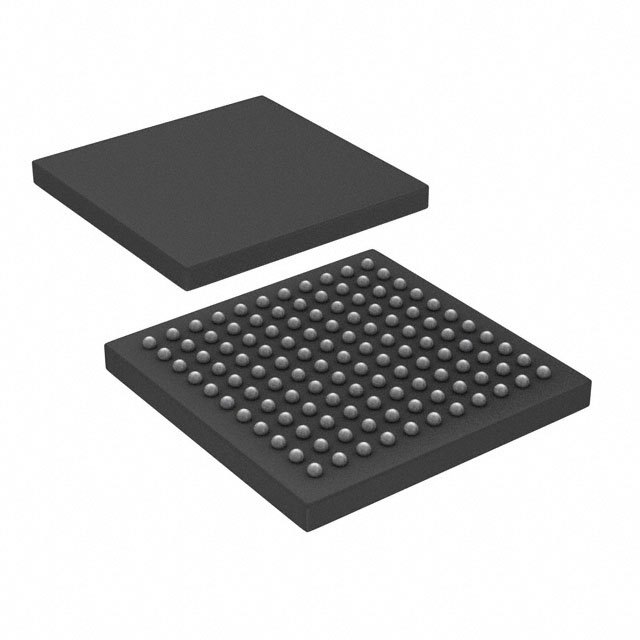

The CY9AF004BGL-G107MJK7ERE1 is an ARM microcontroller from Infineon Technologies, belonging to the FM3 MB9A150RB series. It features a 32-bit ARM Cortex-M3 core operating at a maximum frequency of 40 MHz. The device integrates 64 KB of flash memory and 8 KB of SRAM. It utilizes a 96-pin LFBGA package with dimensions of 6x6 mm. The component supports a supply voltage range of 1.65 V to 3.6 V and operates within a temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• Integrates a high-performance 32-bit ARM Cortex-M3 processor core for efficient code execution.
• Includes on-chip flash memory and static RAM for program storage and data handling.
• Supports multiple communication interfaces including SPI, I2C, and UART/USART.
• Features integrated analog-to-digital converters for signal acquisition.

Microcontrollers Applications

• Industrial control systems
• Consumer electronics devices
• Automotive embedded applications

Microcontrollers Procurement Notes

Verify the exact part number suffix against official Infineon documentation to ensure correct package and temperature grade specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly. Cross-reference ordering information with authorized distributors to validate current availability and lead times.

Microcontrollers Selection Notes

Select this component when a 40 MHz Cortex-M3 performance level is required in a compact 96-pin BGA footprint. Ensure the design accommodates the 1.65 V to 3.6 V supply voltage range. Verify that the available GPIO count and peripheral set meet the specific interface requirements of the target application.

Microcontrollers Part Context

This microcontroller belongs to the FM3 family, which is designed for cost-sensitive applications requiring moderate processing power. The MB9A150RB series variant offers a balance of memory capacity and peripheral integration suitable for general-purpose embedded tasks.

Microcontrollers Replacement Considerations

Consult official Infineon cross-reference tools for verified pin-compatible or functionally equivalent alternatives within the FM3 or AURIX families. Do not assume compatibility with other MCU architectures without detailed electrical and software verification.
