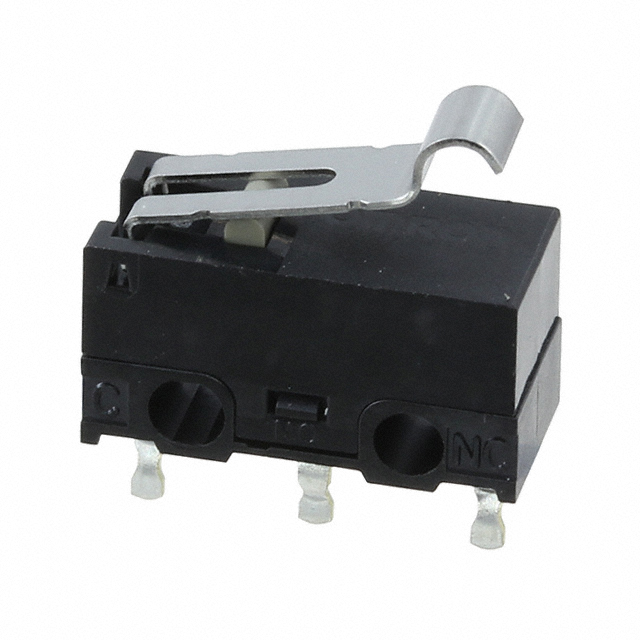

Limit Switches D2F-01L3-T product image

D2F-01L3-T

$0.81

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:1e280dbaff00 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2F-01L3-T is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2F-01L3-T

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：100mA (DC)
Voltage Rating - AC：-
Actuator Type：Lever, Simulated Roller
Mounting Type：Through Hole
Termination Style：PC Pin
Ingress Protection：IP40
Features：-
Operating Force：80gf
Release Force：5.099gf
Operating Position：0.335" (8.5mm)
Pretravel：-
Differential Travel：0.018" (0.45mm)
Overtravel：0.020" (0.5mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V
