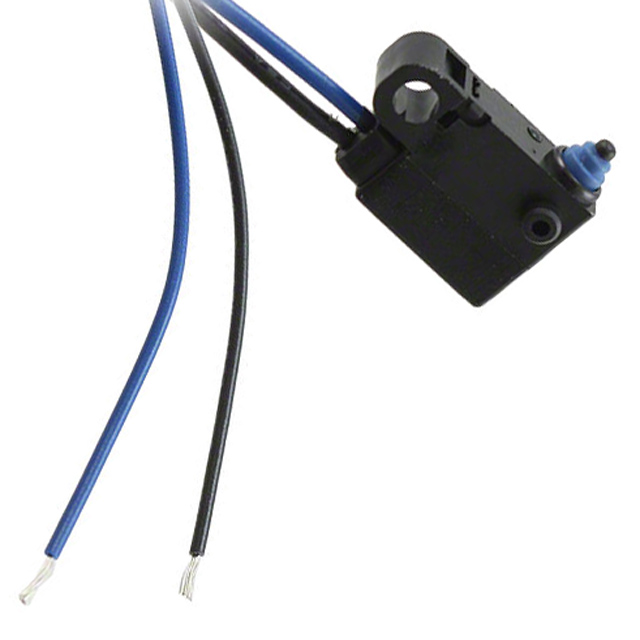

D2HW-C203MRS-100

D2HW-C203MRS-100 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNP ACT SPST-NO 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2HW-C203MRS-100

• Description：SWITCH SNP ACT SPST-NO 0.1A 125V
• Series：D2HW
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：100mA (AC), 2A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Wire Leads
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：76gf
• Release Force：10gf
• Operating Position：0.250" (6.4mm)
• Pretravel：-
• Differential Travel：0.010" (0.25mm)
• Overtravel：0.055" (1.4mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：12 V

Limit Switches datasheet and documents for D2HW-C203MRS-100
