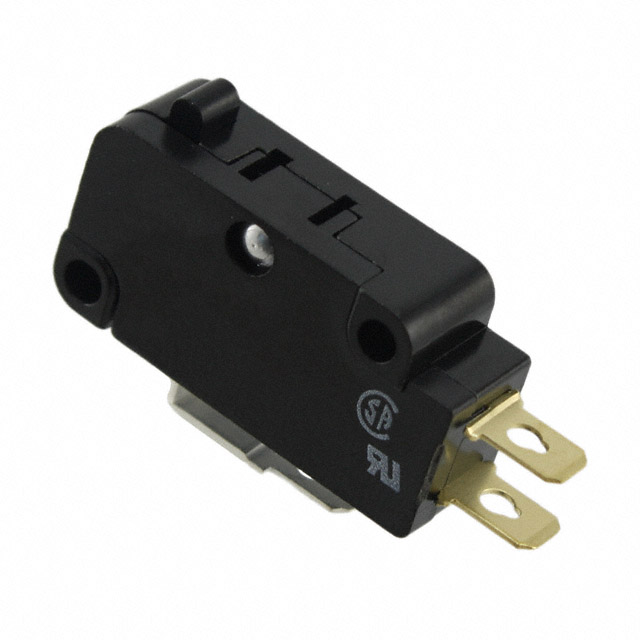

D2MV-1L11-1C3

D2MV-1L11-1C3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2MV-1L11-1C3

• Description：SWITCH SNAP ACTION SPDT 1A 125V
• Series：D2MV
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：1A (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：50gf
• Release Force：4.079gf
• Operating Position：0.600" (15.2mm)
• Pretravel：0.067" (1.7mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2MV-1L11-1C3
