D3433-5002-AR

Headers, Male Pins Overview

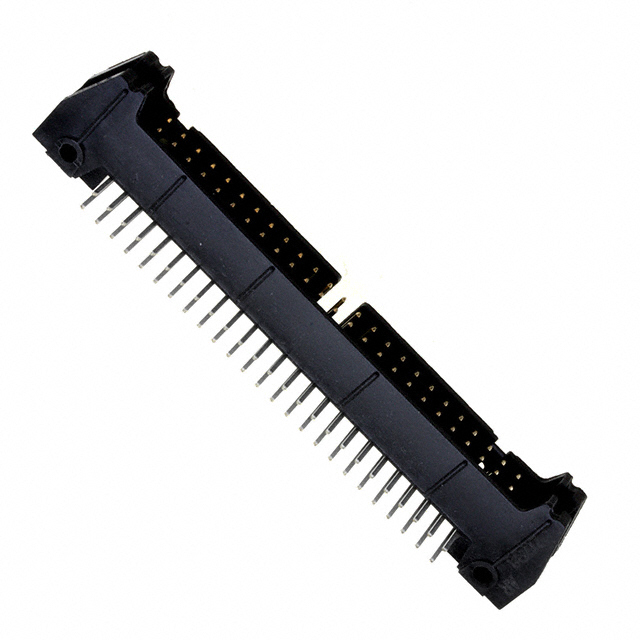

The 3M D3433-5002-AR is a right-angle, through-hole rectangular header connector from the D3000 series. It features 50 positions in a dual-row configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes square male pins with gold-plated mating contacts and tin-plated shank contacts. Constructed with black PCT insulation and a four-wall shield, it supports board-to-cable applications. Rated for 1.75A at temperatures ranging from -55°C to 105°C, it includes push-pull fastening and mounting flanges.

Headers, Male Pins Feature Summary

• Four-wall shielding design provides enhanced electromagnetic interference protection
• Push-pull fastening mechanism ensures secure cable retention
• Gold-plated contact surfaces ensure reliable signal transmission
• Integrated mounting flanges facilitate stable PCB installation

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• Industrial control systems
• Electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific part number D3433-5002-AR against official 3M documentation to confirm compatibility with existing designs. Ensure that the required pin count, pitch, and mounting style match the target application requirements before procurement. Cross-reference the manufacturer's latest datasheets to validate current availability and any potential engineering changes or obsolescence notices associated with this component.

Headers, Male Pins Selection Notes

Select this connector when a right-angle, shielded header with push-pull retention is required for high-density applications. Consider the 50-position dual-row layout and 2.54mm pitch for space-constrained designs. Evaluate the thermal rating and current capacity against system load requirements. Confirm that the through-hole mounting method aligns with the printed circuit board manufacturing capabilities and mechanical constraints of the assembly.

Headers, Male Pins Part Context

This component belongs to the 3M D3000 series of four-wall headers, designed for robust interconnect solutions. The series offers various position counts and configurations to suit different electronic assembly needs. The D3433-5002-AR specifically addresses applications requiring reliable, shielded connections with secure cable retention mechanisms in a compact form factor.

Headers, Male Pins Replacement Considerations

Consult official 3M substitution guides for verified alternative part numbers. Ensure that any replacement matches the critical parameters of pitch, row count, and shielding type. Verify that the substitute component maintains the same mounting style and electrical ratings to guarantee functional equivalence without redesigning the host system.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of brass.

Does this connector include a shield?

Yes, it features a four-wall shield design.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.
